Welcome to this interactive ECG course.

Although it is one of the oldest paraclinic exams, dating back to the late 19th century, the ECG is still of crucial clinical use. This examination often still poses problems of interpretation to the medical practitioner.

This course aims to help the student, the practicing physician and even the trained cardiologist to improve his knowledge in electrocardiography. It consists of 250 traces of varying complexity with a description of each one by experts. This allows the reader to compare his analysis with that of the experts. In addition, the areas of interest of the ECG can be activated to be clearly highlighted.

We hope that these plots will be useful to readers and will improve their knowledge.

The ECGs are available sorted by keywords and categories.

ECG 221

ECG 221


Baseline rhythm

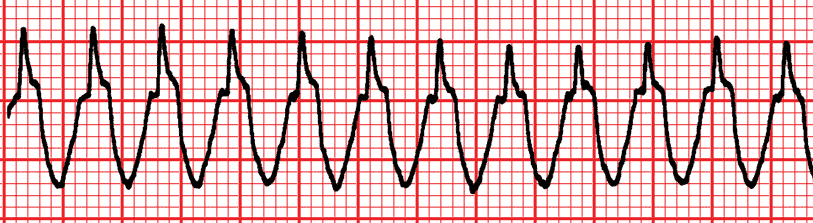

Regualr at 280 bpm.P-waves: not visible.PR interval: unmeasurable.QRS: enlarged (160 ms).ST segment: unmeasurable.T-waves: unmeasurable.QT interval: normal.


Wide QRS complex tachycardia.
Right bundle branch block morphology.
R/S ratio <1.


Ventricular flutter.


In this enlarged QRS complex tachycardia, the QRS morphology is typical for a ventricular origin. The rate is compatible with a flutter. The only differential diagnosis is atrial flutter in a patient treated with flecainide.
