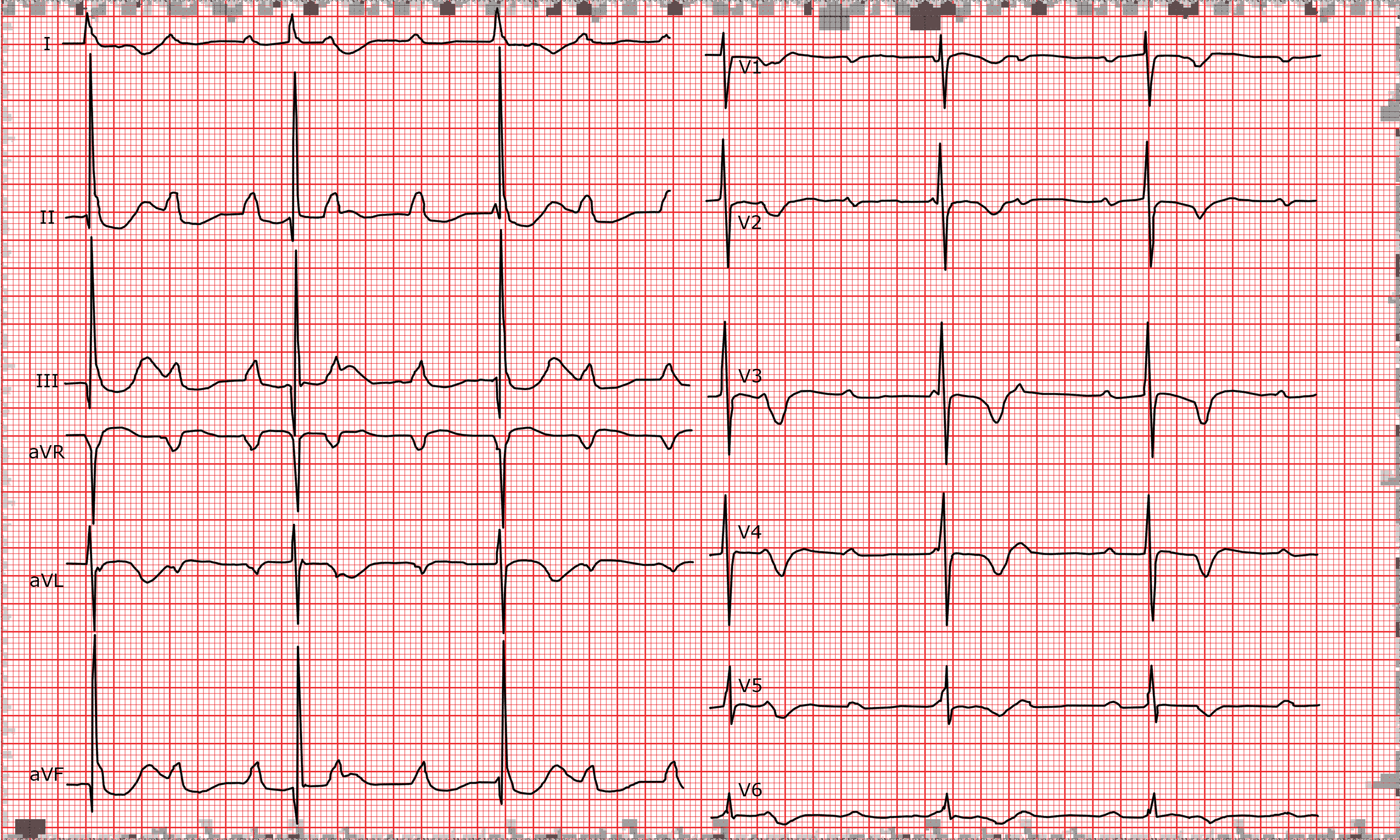

ECG 216

ECG 216


Baseline rhythm

Regular at 40 bpm.P-waves: increased amplitude in II, III and aVF..PR interval: not applicable.QRS: narrow, axis +75°. Increased amplitude in II, III and aVF.

ST segment

Negative in precordial leads.T-waves: negatives in V3-V6.QT interval: normal.

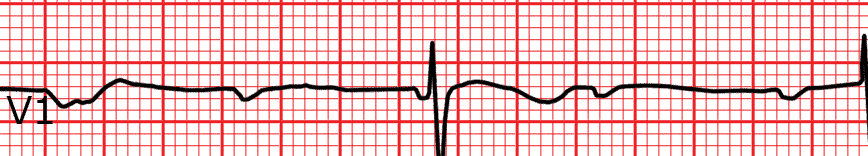

Non conducted P waves.
A-V dissociation.


Complete A-V block. Right atrial enlargement.


The atrioventricular dissociation is typical for a complete A-V block. The increased amplitude of P waves in II, III and aVF is a sign of right atrial enlargement. The association of this atrial enlargement and the complete A-V block is seen in the corrected transposition of the great vessels as in this case.


Conduction abnormalities


Reading level

2 / 3
