ECG 209

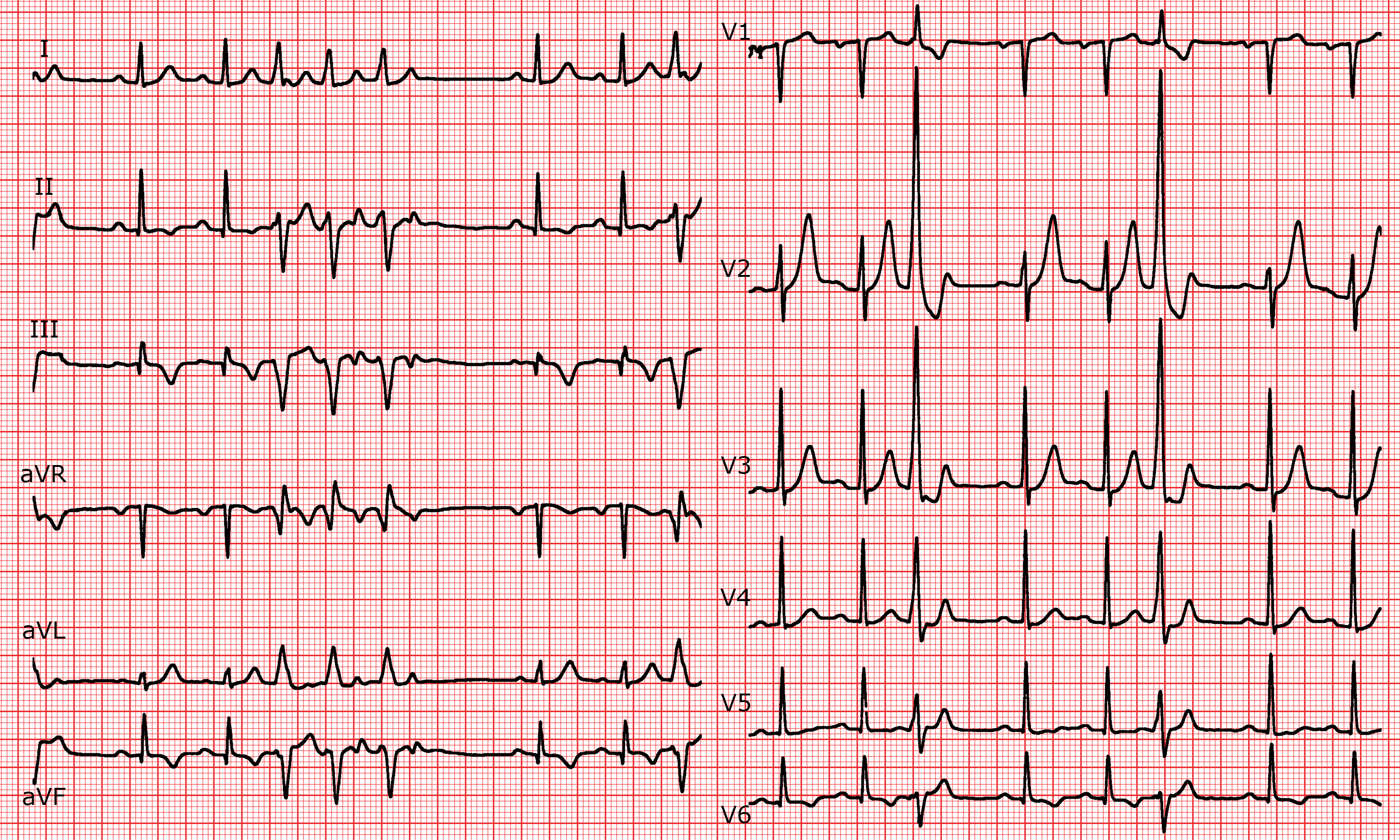

ECG 209

Description

Baseline rhythm

Regular sinus at 80 bpm.P-waves: normal.PR interval: 200 ms.QRS: normal. Broad QRS extrasystoles.ST segment: depressed from V2 to V4.T-waves: negative in II, III and aVF. Peaked in V2 and V3.QT interval: normal.


Zones

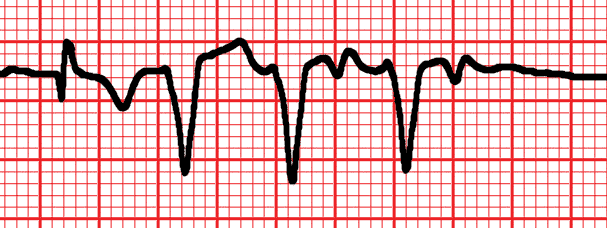

A-V dissociation. Salvos of wide QRS complex tachycardia.

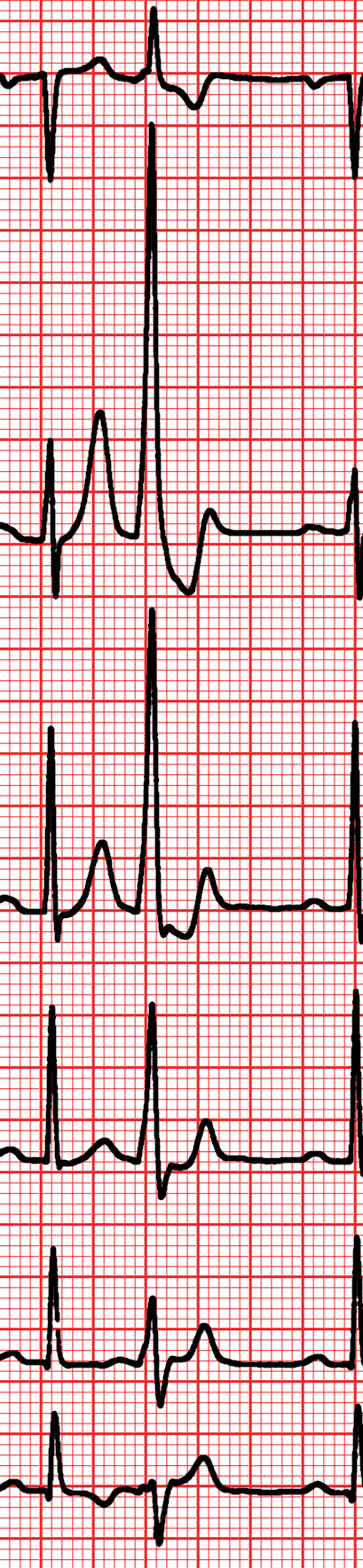

Right bundle branch block morphology with r/s ration < 1 in V6.

Diagnostic

Ventricular extrasystoles with salvos of non-sustained ventricular tachycardia.


Comments

The morphology of the QRS in the precordial leads is typical of ventricular complexes. In the peripheral leads, the salvo of tachycardia is of the broad complex type with a left axis. The Q-wave in aVR is compatible with a ventricular complex. The 2nd and 3rd complex of this salvo are followed by a P-wave which is retrograde. The first complex of this salvo is not followed by a P-wave because at this instant, there is a dissociation which disappears as soon as the retrograde conduction arises. The last visible complex in these peripheral leads is also broader and followed by a dissociated sinus P-wave.


Category

Arrhythmia


Keywords


Reading level

2 / 3
