ECG 192

Description

Baseline rhythm

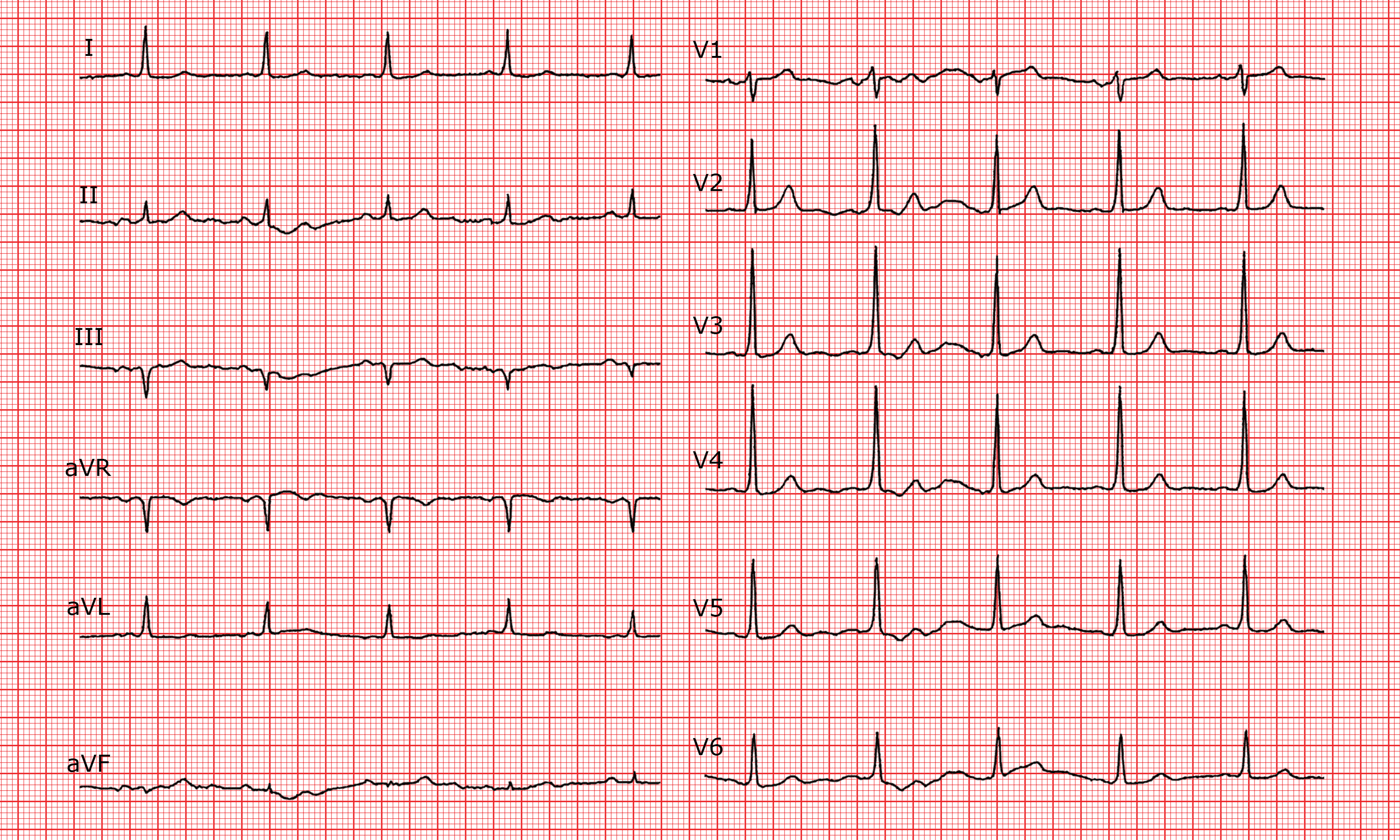

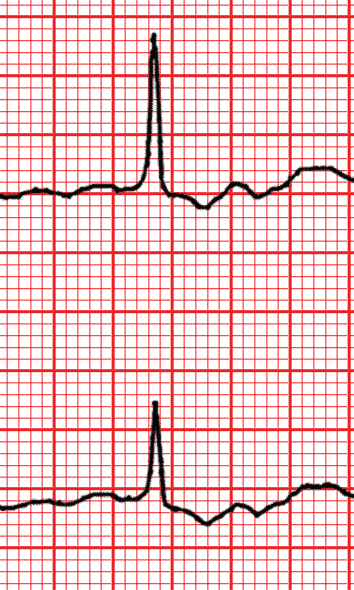

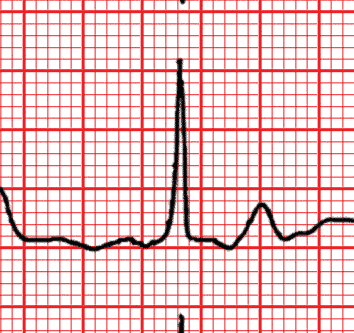

Sinus, regular at 85 bpm.P-waves: normal.PR interval: normal (140 ms).QRS: broadened (110 ms); upstroke at the beginning of the QRS with ∂ wave, clearly seen in the precordial leads and in V1 and V2. Axis -10 degrees.ST segment: normal.QT interval: normal.

Zones

Diagnostic

Wolff-Parkinson-White syndrome with an accessory pathway probably located in the left postero-lateral region.

Comments

The presence of the short PQ with ∂ wave is typical of the WPW syndrome. The axis of the ∂ wave is compatible with a left-sided accessory pathway, most likely a postero-lateral one. If the patient is symptomatic, ablation of the accessory pathway is recommended because there is a risk of developing atrial fibrillation with a fast ventricular response which could result in syncopal episodes. The possible arrhythmias which these patients develop are narrow or broad complex A-V reentrant tachycardias and atrial fibrillation.

Keywords

Preexcitation
