ECG 182

ECG 182

Description

Baseline rhythm

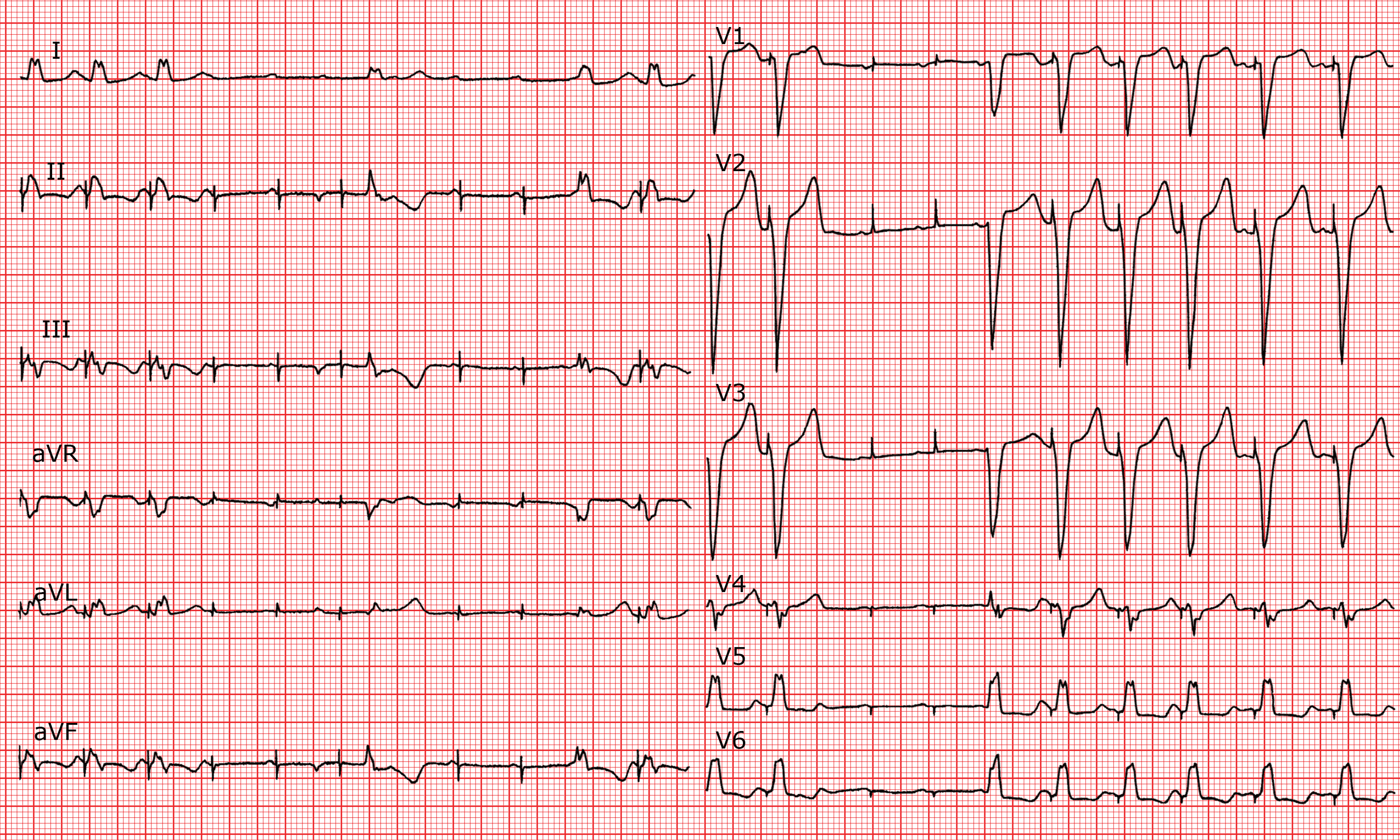

Irregular, about 120 to 130 bpm.P-waves: normal but not always followed by a QRS.PR interval: short at 130 ms.QRS: prolonged duration at 140 ms. Preceded by a spike.ST segment: depressed from V4 to V6.T-waves: negative in II, III and aVF and from V4 to V6.QT interval: normal.


Zones

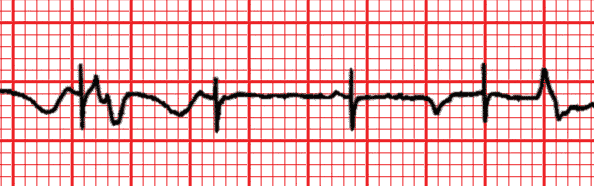

Spikes without QRS complexes.
Spikes without QRS complexes.

Diagnostic

Pacemaker dysfunction.


Comments

We see clearly that when the P-waves are followed by a QRS, the latter is preceded by a spike confirming the presence of a DDD pacemaker. There is a dysfunction of this latter because several spikes are not followed by a QRS complex, indicating capture failure. Sometimes there is a ventricular extrasystole where there is no QRS, which corresponds to an escape rhythm.


Category

Pacemakers


Keywords


Reading level

2 / 3
