ECG 177

ECG 177

Description

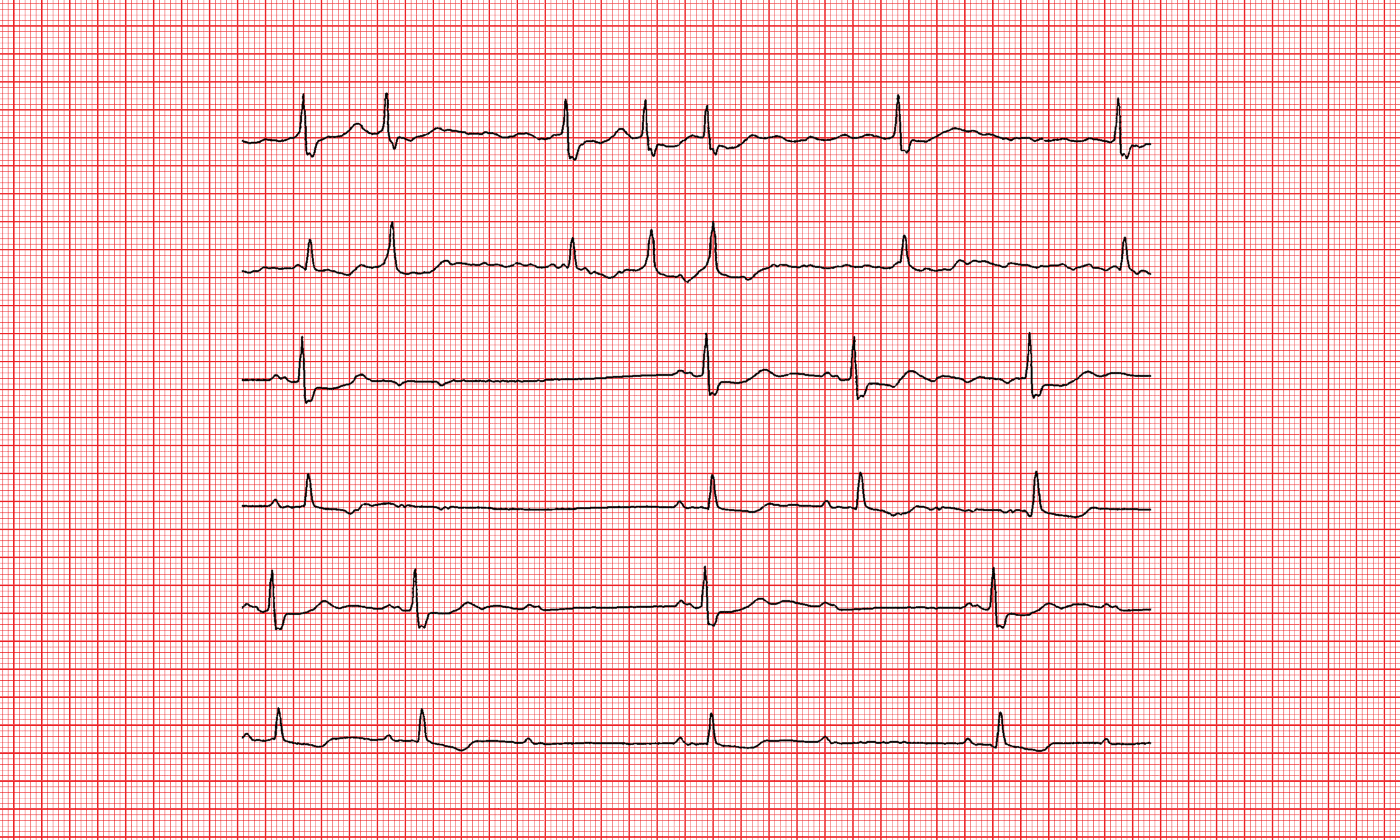

Continuous recording of a single lead.P-waves visible and variable in terms of duration and shape.Intermittent absence of P-waves and then appearance of baseline oscillation.Presence of sinus pauses after cessation of the atrial fibrillation.P-waves not always followed by a QRS complex.QRS complexes sometimes normal, sometimes prolonged.


Zones

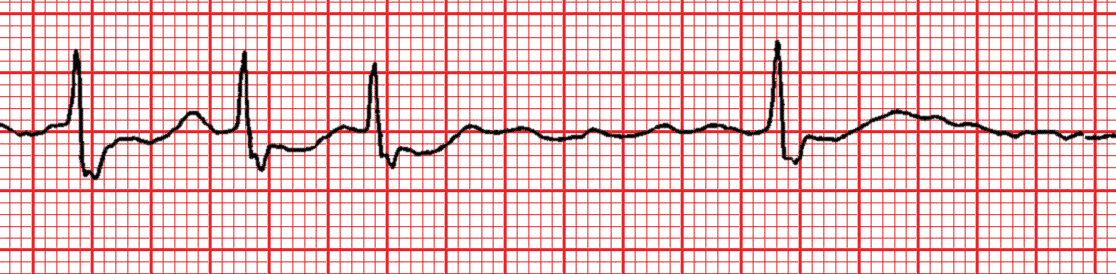

Atrial fibrillation.
Wide QRS complex.

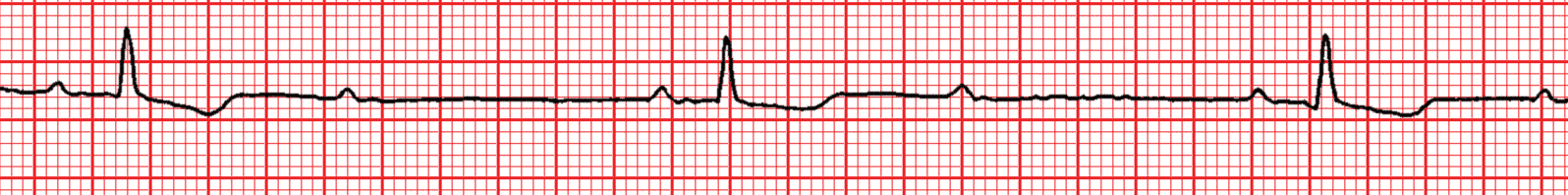

2° 2:1 A-V block.

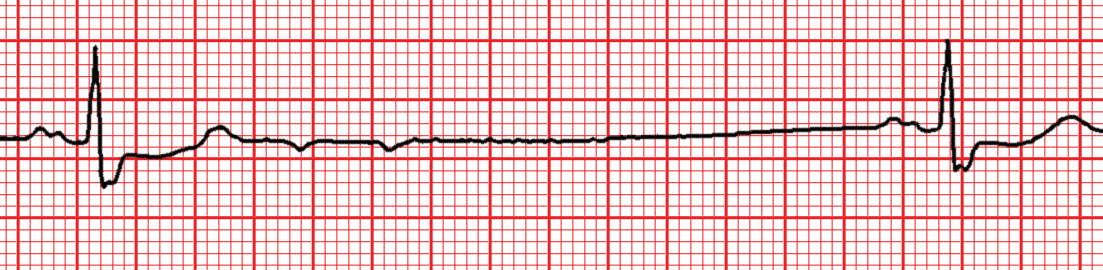

Pause following the end of atrial fibrillation.

Diagnostic

Alternation of 2:1 second-degree A-V block with focal atrial fibrillation. Intermittent bundle branch block.


Comments

The ‘P on T’ waves which initiate atrial fibrillation are typical of focal atrial fibrillation. The broadening of the QRS complex indicates intermittent conduction disturbance. We also note intermittent RBBB. The pauses after the cessations of the episodes of atrial fibrillation are common. On the other hand, the A-V conduction disturbances are not part of the context of focal atrial fibrillation and indicate a separate conduction problem at the level of the A-V node and in particular Mobitz type II in view of the intermittent bundle branch block.


Category

Arrhythmia


Keywords


Reading level

2 / 3
