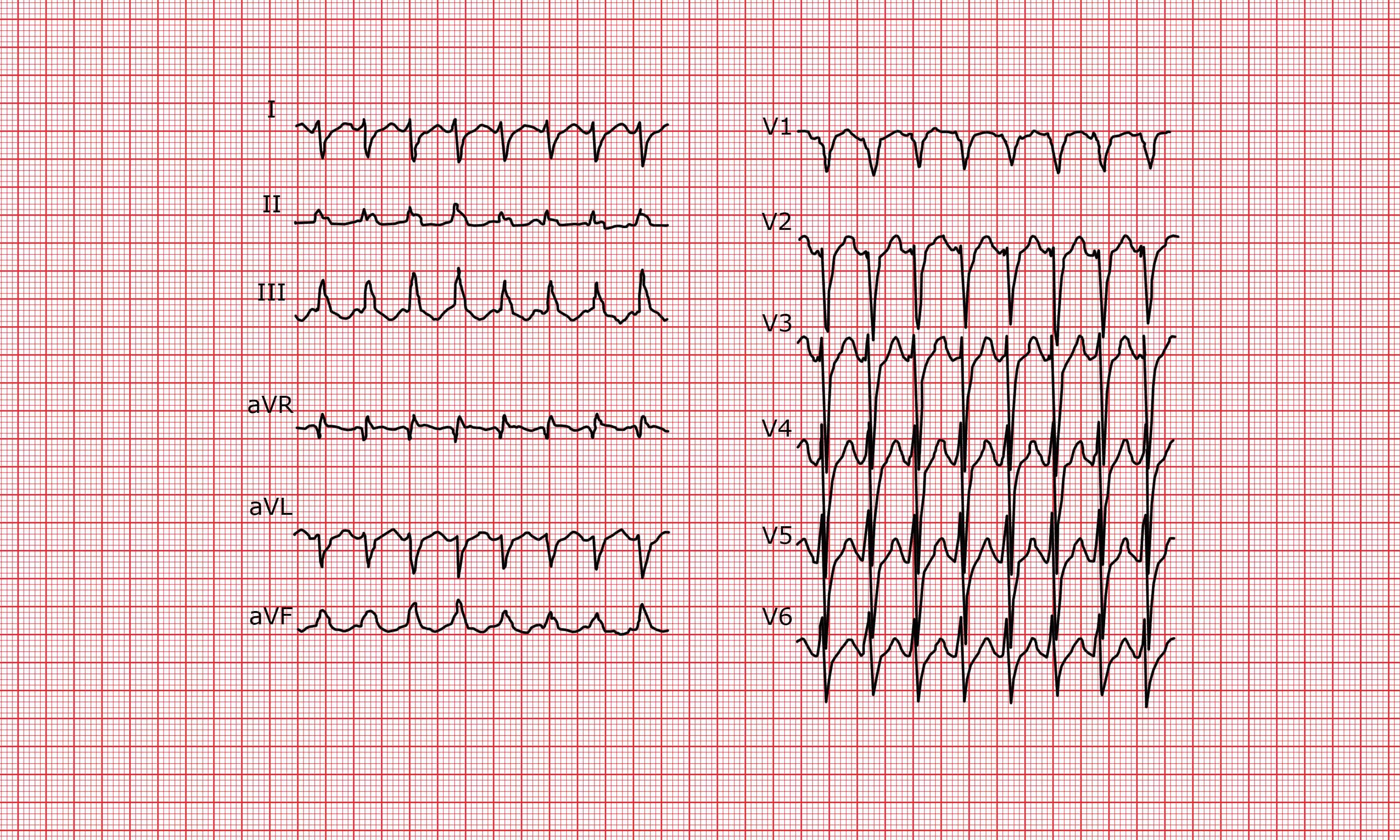

ECG 171

ECG 171

Description

Basic rhythm

Regular tachycardia at 173 bpm.

P waves

Not visible.

PR interval

Not applicable.

QRS

Wide (140 ms). Axis -10°.

ST segment

Depressed in III and aVF.

T waves

Negative in III and aVF

QT interval

Normal.


Zones

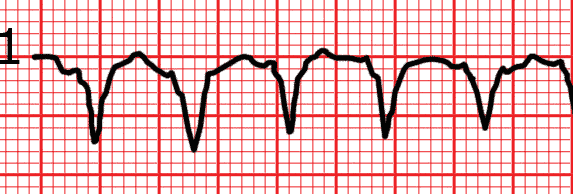

Wide QRS complex tachycardia with A-V dissociation.

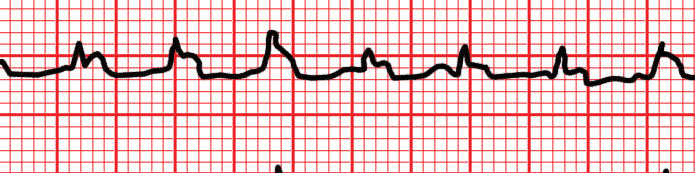

A-V dissociation.

Diagnostic

Ventricular tachycardia (fascicular type).


Comments

On looking at the trace carefully, we notice an A-V dissociation in leads II and V1. This is a very strong argument in favour of ventricular tachycardia. The QRS is not very broad. We notice a deep S-wave in V5 and V6 with a LBBB-morphology QRS complex. These all point to a fascicular origin of the ventricular tachycardia. Usually, you get RBBB morphology following an infarct which causes conduction abnormalities in the left bundle.


Category

Arrhythmia


Keywords


Reading level

3 / 3
