ECG 167

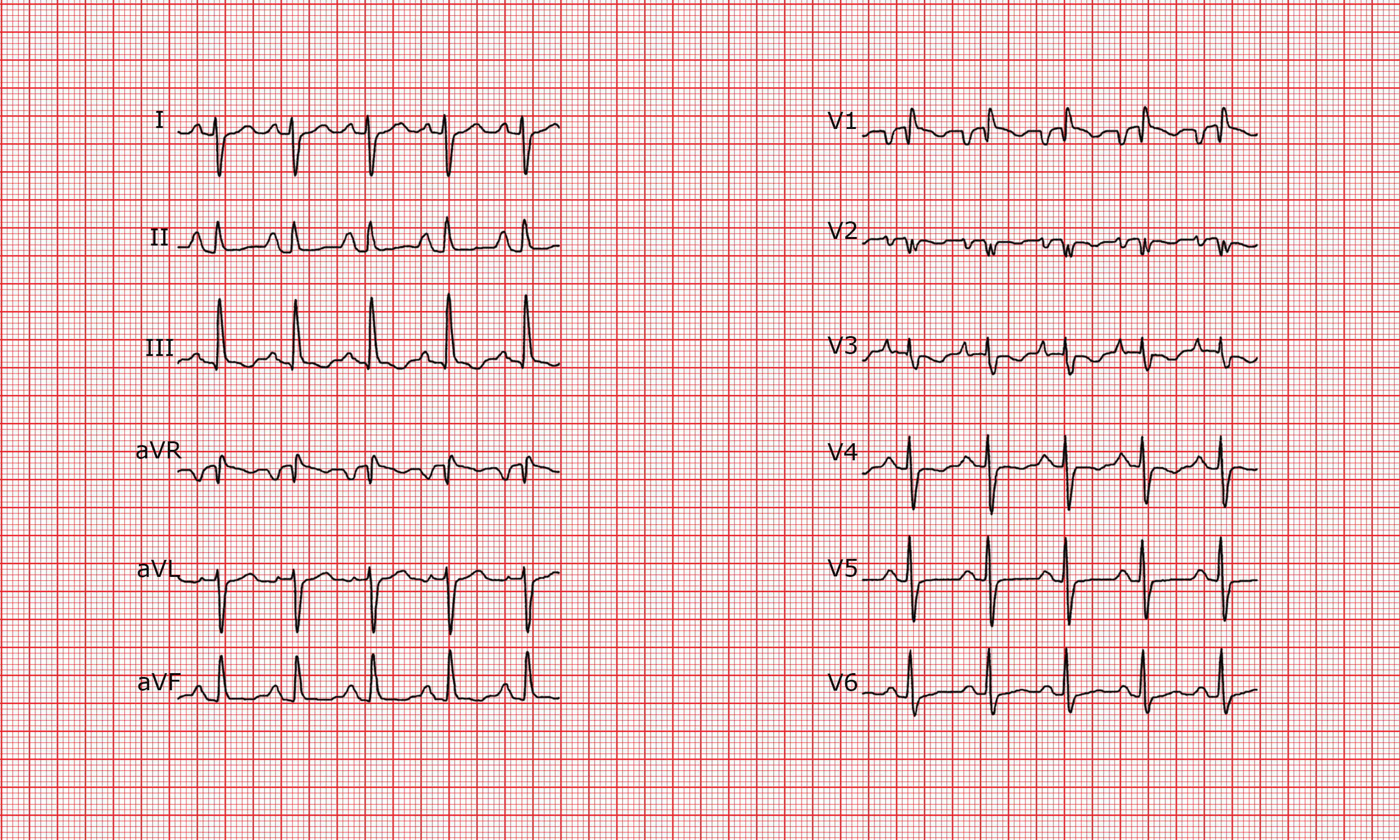

ECG 167

Description

Baseline rhythm

Regular at 101 bpm.P-waves: visible with an increased amplitude in II, III and markedly negative in V1.PR interval: normal.QRS: broadened (120 ms). Axis +70°.ST segment: depressed from V1 to V4.T-waves: negative from V1 to V4.QT interval: normal.

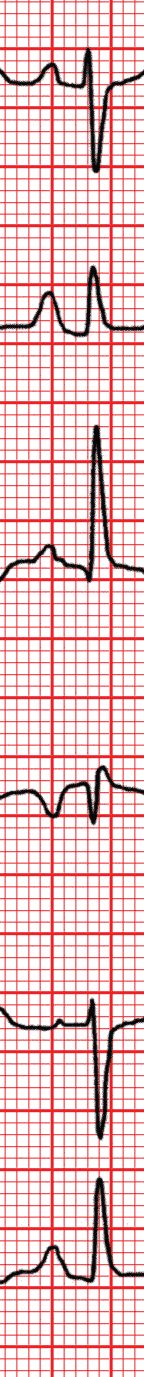

Zones

Increased amplitude of P waves.
Markedly negative of the terminal portion of the T wave.
Almost vertical axis of the QRS complex.

Diagnostic

Bi-atrial hypertrophy, incomplete RBBB and probable right ventricular hypertrophy.


Comments

The morphology of the P-waves in II, III is typically that of right atrial hypertrophy with amplitude of the P-waves > 2.5 mm. In V1, the terminal negativity of the P-wave is due to left atrial hypertrophy. The axis of the QRS complex is almost vertical and its morphology in V1 is that of RBBB. This recording is that of mitral stenosis with bi-atrial dilatation and right ventricular dilatation revealing itself by the incomplete RBBB and the almost vertical axis of the QRS complex.


Category

Hypertrophy


Keywords


Reading level

1 / 3
