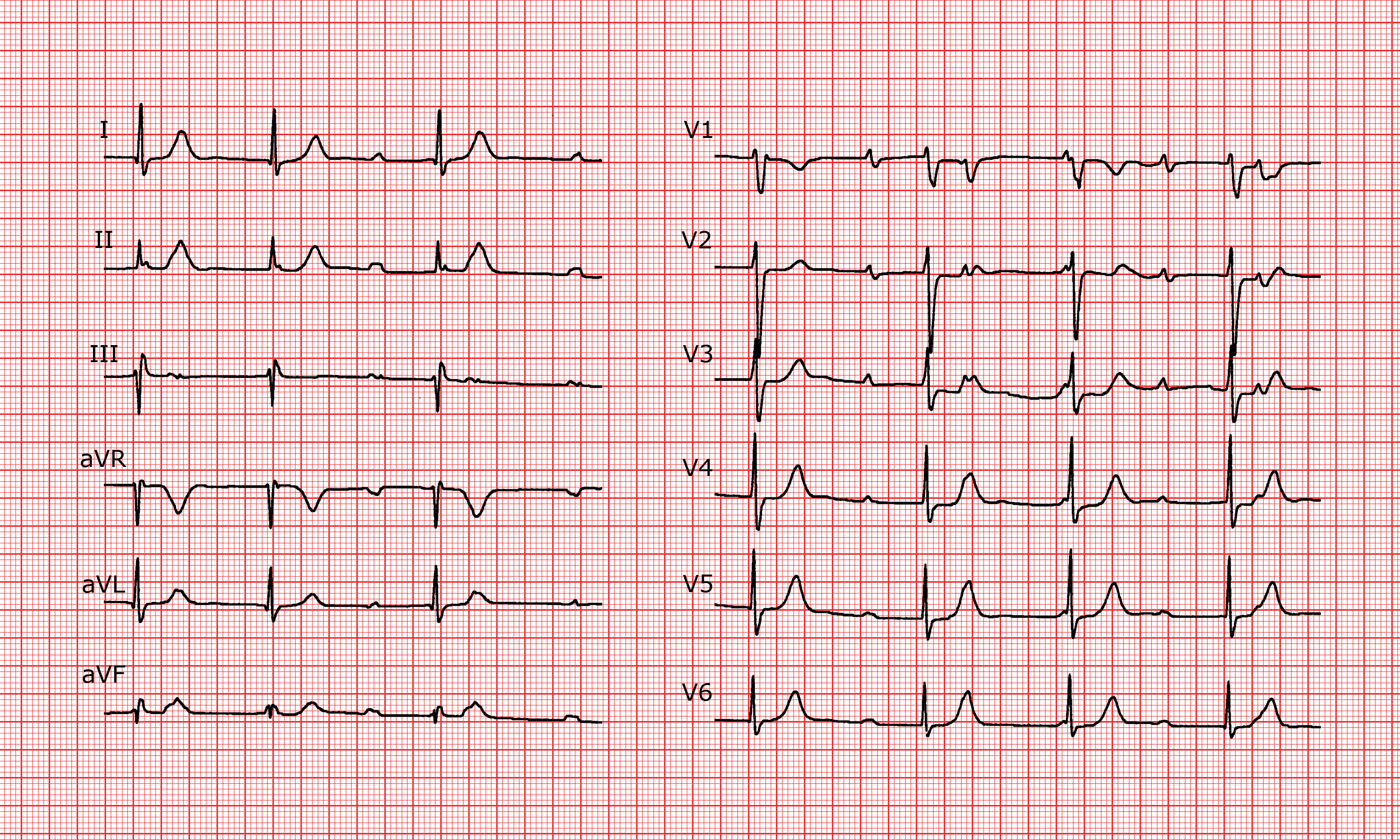

ECG 141

ECG 141


Basic rhythm

Sinus rhythm at 50-63 bpm.

P waves

Significant negative portion in V1, prolonged duration at 110 ms.

PR interval

Prolonged at 440 ms.


Normal axis and morphology.

ST segment, T waves


QT interval



Left atrial hypertrophy.

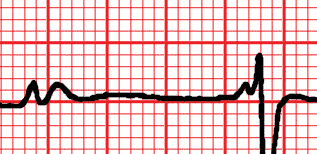

Blocked P wave.
Prolonged PR interval.


Wenckebach type second degree A-V block, left atrial hypertrophy.


The PR interval longer than 300 ms and the narrow QRS complex morphology suggest an intranodal A-V block. On the left part of the trace, we notice a variation in the RR interval which is part of the prolongation of A-V conduction. In the precordial leads the first apparent P wave is conducted, the second is conducted with a very long PR interval and the third is blocked.


Conduction abnormalities


Reading level

2 / 3
