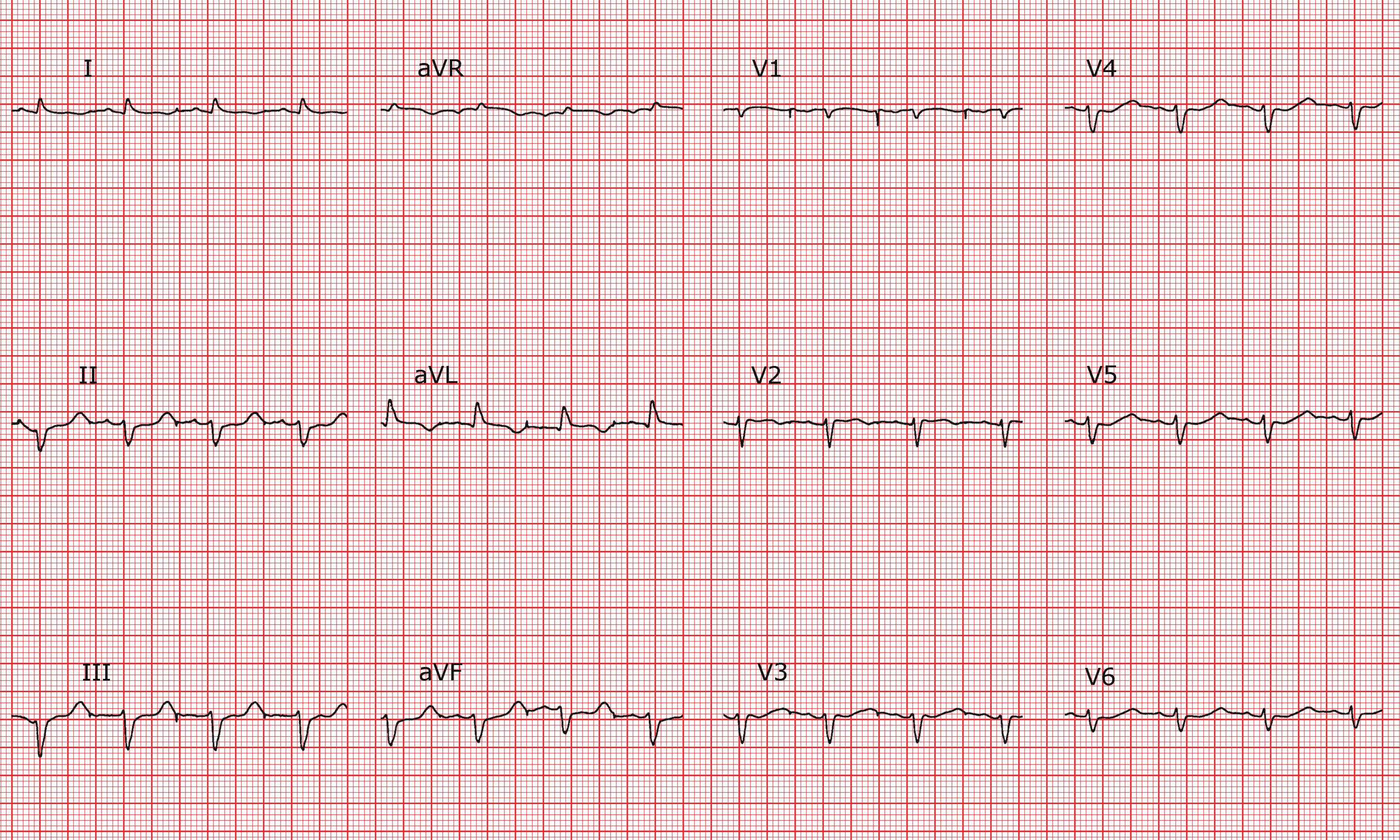

ECG 133

ECG 133

Description

Basic rhythm

Regular at 100 bpm.

P waves

Preceded by a spike. Delay between the spike and the QRS complex of 260 ms.

QRS

Prolonged. Axis -50°. Non-progression of the R wave in the precordial leads. Micropotentiels in the precordial leads.

QT interval

Normal.


Zones

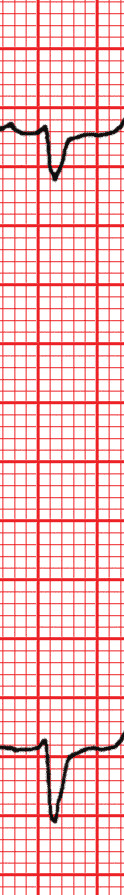

Left axis deviation.

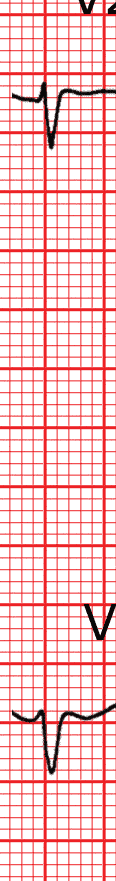

Micropotentiels.
Atrial spike with first degree AV block.

Diagnostic

Pacemaker working normally in AAI mode. First degree A-V block. Left anterior hemiblock. Micropotentiels.


Comments

The P waves are preceded by a spike, because the atria are paced. The PR interval (in this case the interval between the spike and the R wave) is prolonged, a sign of a first degree A-V block (this is linked to the DDD mode of the pacemaker). The QRS complexes are wide with left axis deviation due of a left anterior hemiblock. On this ECG trace the pacemaker is working in AAI mode. It only paces the ventricles if the A-V delay exceeds a predetermined value, which is usually programmed to be around 300 ms in order to allow normal ventricular depolarisation to occur as much as possible.


Category

Pacemakers


Keywords


Reading level

2 / 3
