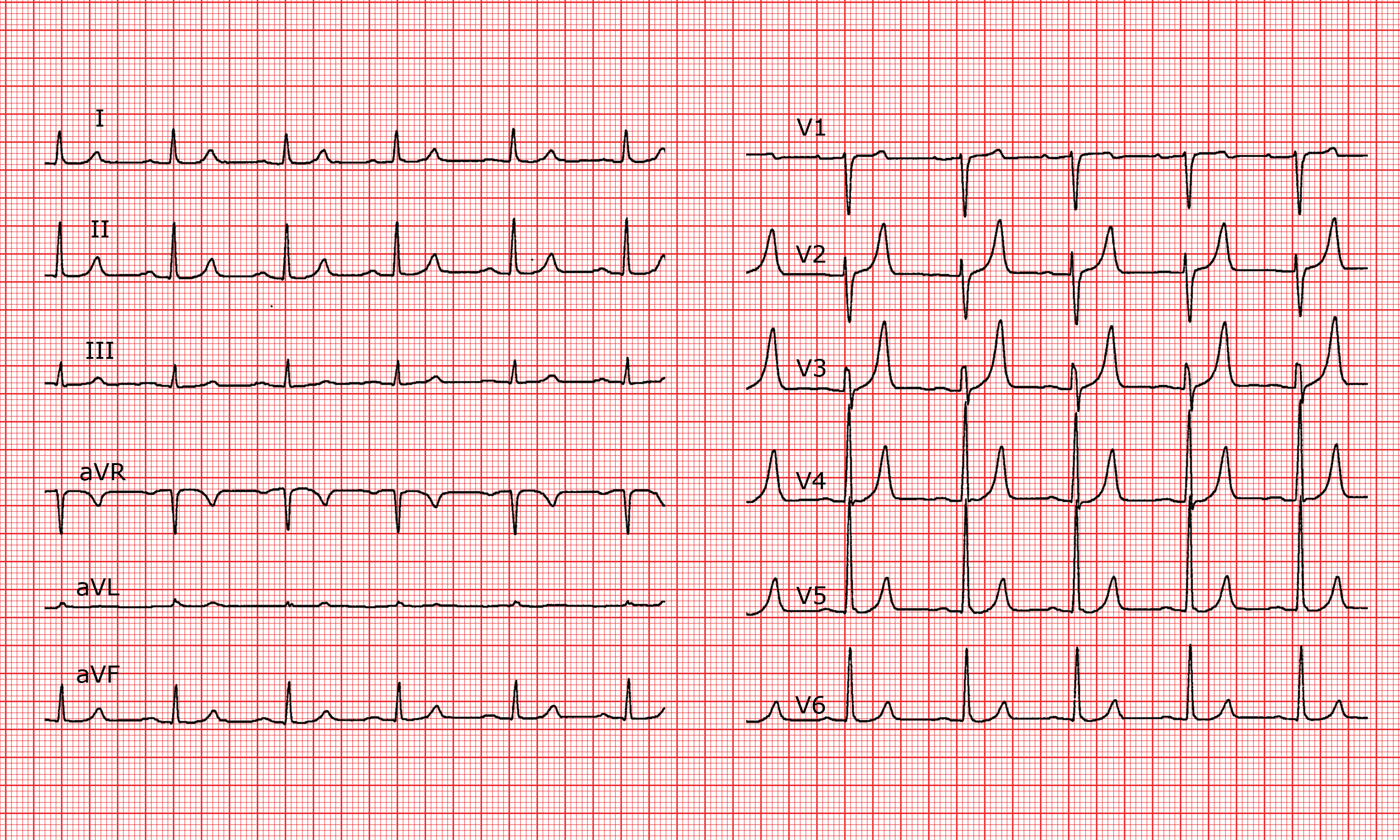

ECG 118

ECG 118


Basic rhythm

Sinus rhythm, regular at 75 bpm.

P waves


PR interval

Prolonged (250 ms).


Normal morphology, duration and axis.

ST segment


T waves

Tall, pointed, with narrow bases from V2 to V5.

QT interval



Increased amplitude of the T wave.
Prolonged PR interval.


First degree A-V block. Hyperkalemia.


The tall, pointed, symmetrical ("tent-shaped") T waves primarily suggest hyperkalemia, which also causes the slight prolongation of the PR interval.


Conduction abnormalities


Reading level

1 / 3
