ECG 110

ECG 110

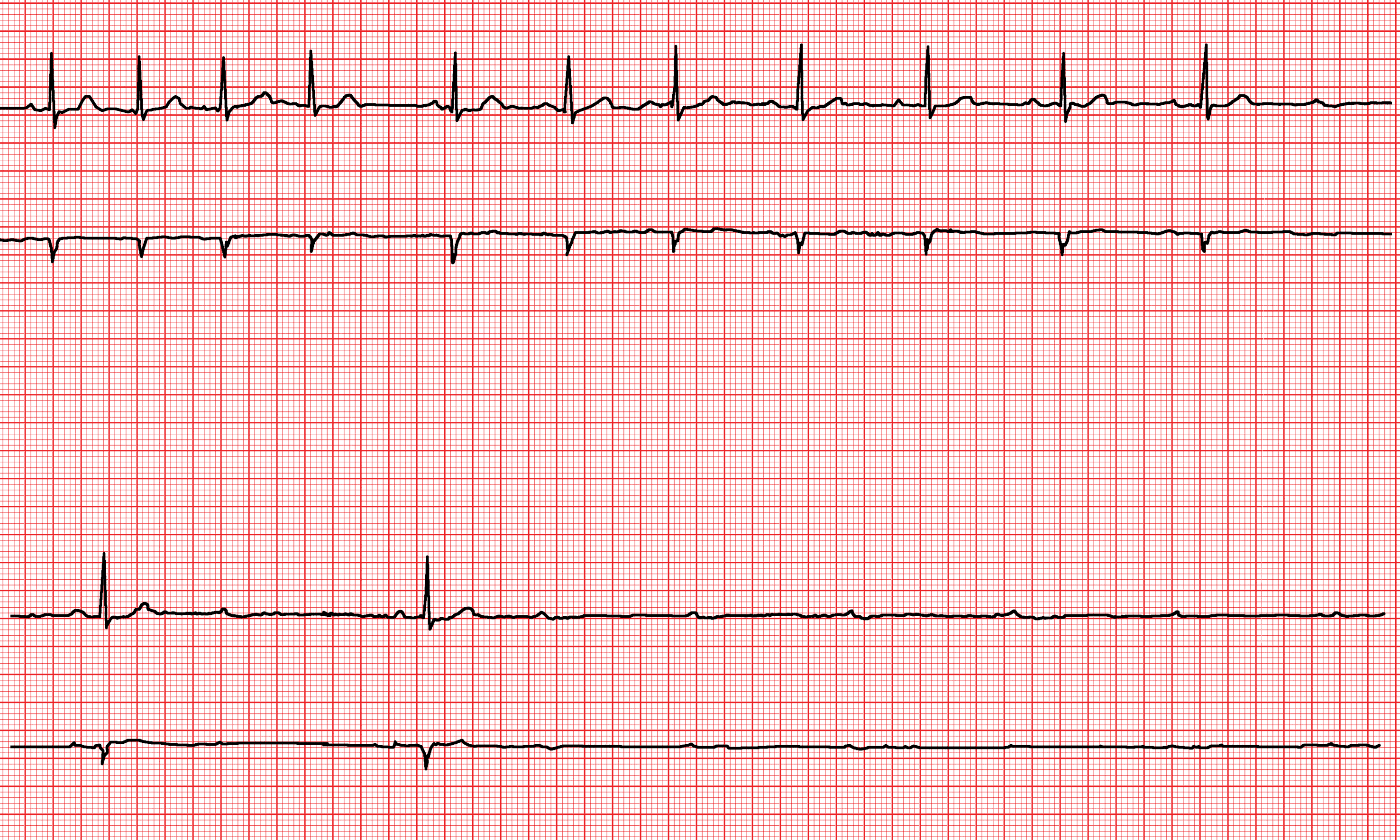

Continuous recording. Basic rhythm

Sinus rhythm at 75 bpm.

PR interval

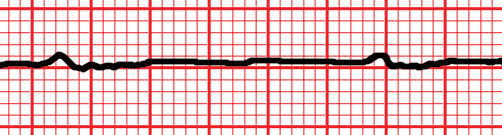

Normal at the start. P waves not followed by QRS complexes on the bottom trace.


Normal duration.

T waves


ST segment


QT interval



Non conducted P waves.


High-degree A-V block.


The first part of this Holter recording shows a completely normal trace. A 2:1 second degree A-V block suddenly appears, followed by a high-degree A-V block which led to a syncope. Recordings of this type are relatively rare for patients with syncopes since this type of block can be very paroxystic. Clearly a pacemaker must be implanted immediately.


Conduction abnormalities


Reading level

2 / 3
