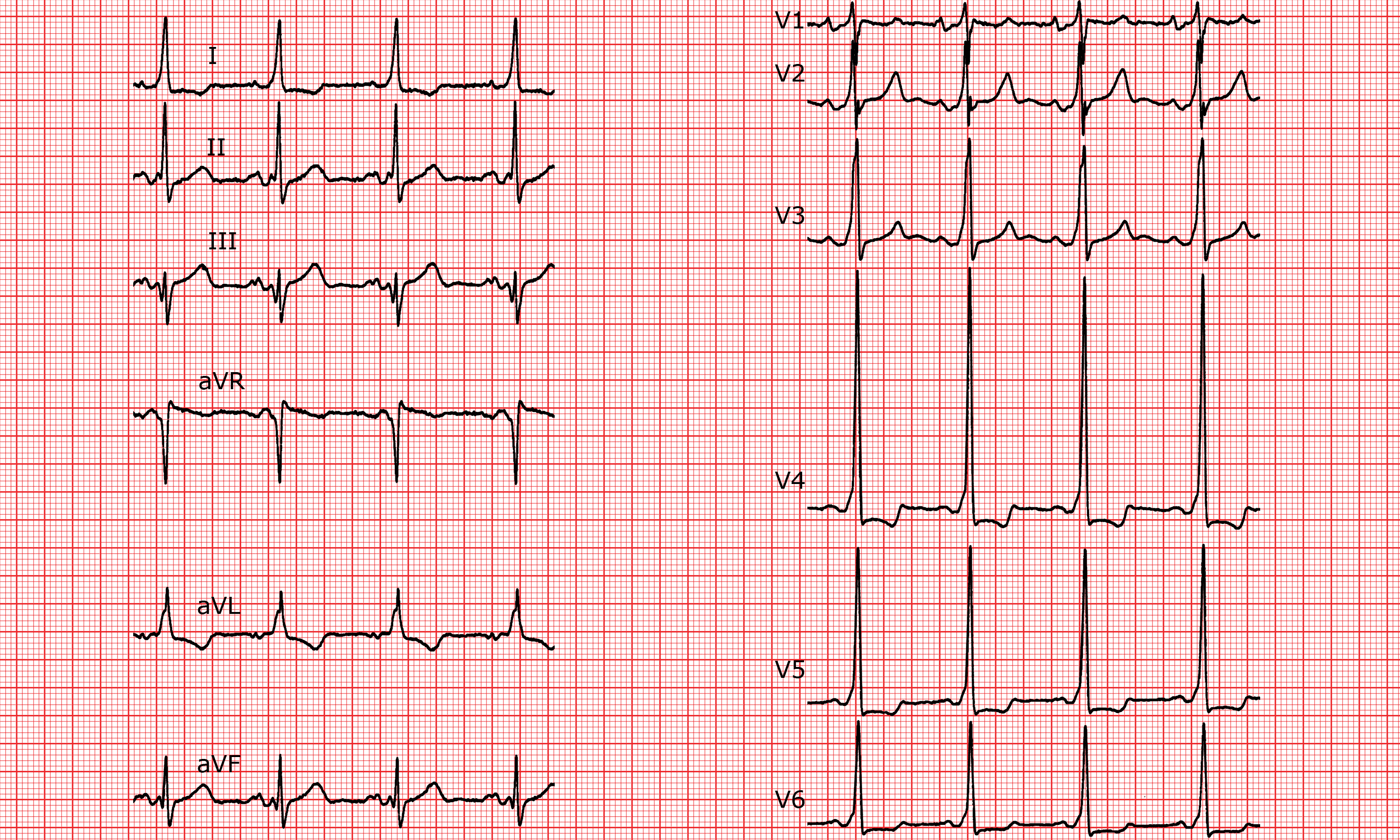

ECG 106

ECG 106

Description

Basic rhythm

Sinus rhythm, regular at 69 bpm.

P waves

Bifid with prolonged duration (greater than 110 ms).

PR interval

Short (less than 120 ms).

QRS

Starts with a delta wave. Tall R wave in the precordial leads (greater than 35 mm).

ST segment

Depression in I, aVL and from V4 to V6.

T waves

Negative in I, aVL and from V4 to V6.

QT interval

Normal.


Zones

Short PR interval with ∂ wave.

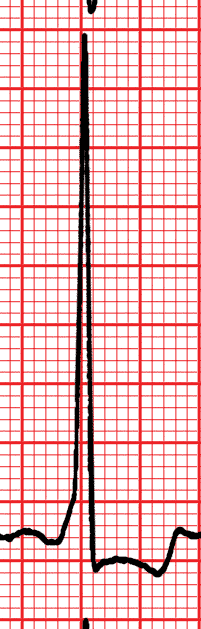

Increased QRS complex amplitude.
Bifid P wave with prolonged duration > 100 ms.

Diagnostic

WPW syndrome, left atrial hypertrophy, left ventricular hypertrophy.


Comments

The short PR interval and the delta wave are signs of WPW syndrome which in this case is associated with left ventricular hypertrophy given the tall R waves in the precordial leads. There are also classic signs of left atrial hypertrophy. In this case, the patient has aortic stenosis as well as WPW syndrome.


Category

Preexcitation


Keywords


Reading level

2 / 3
