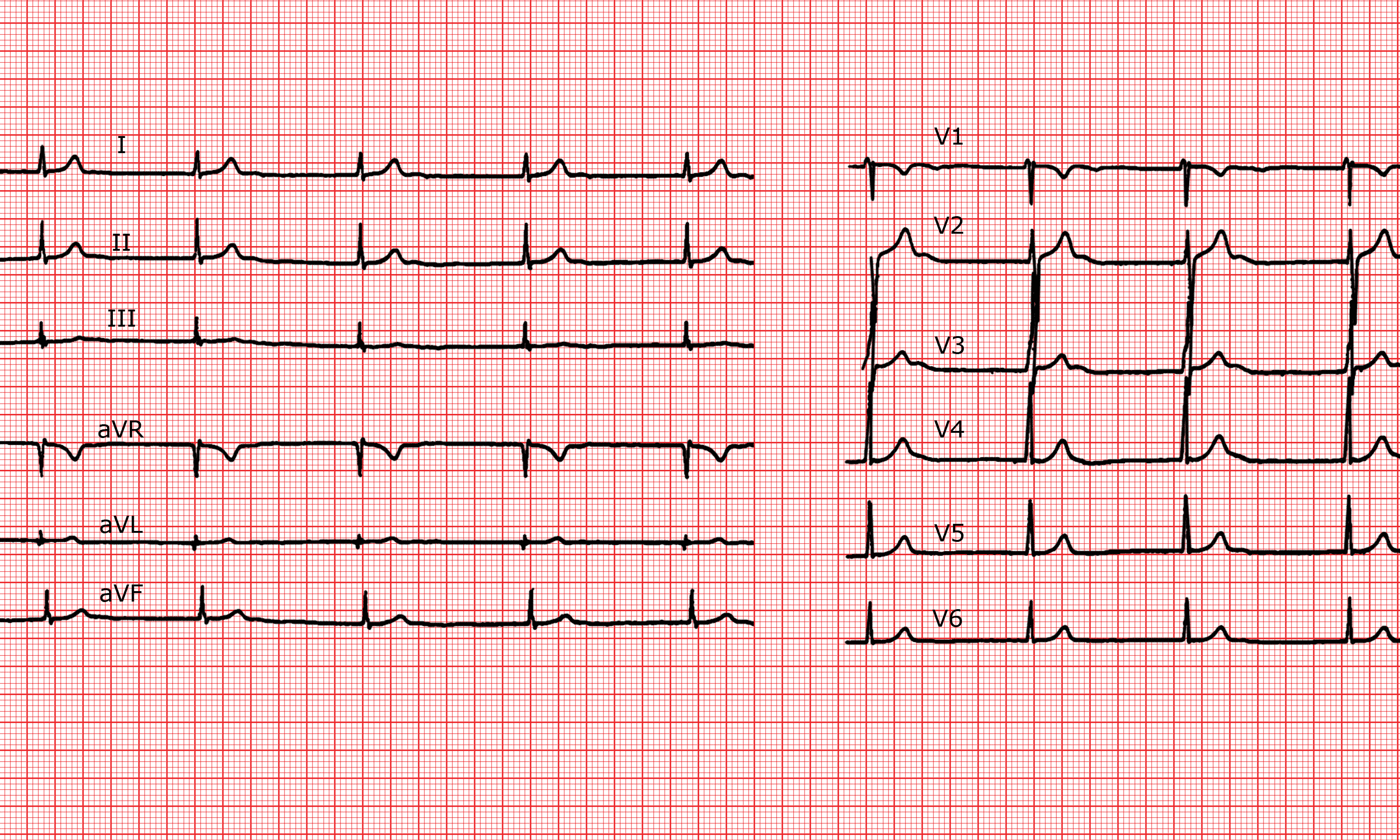

ECG 104

ECG 104


Basic rhythm

Nodal rhythm at 52 bpm.

P waves

Not visible.

PR interval

Not definable.



ST segment


T waves


QT interval



Absence of P wave. Narrow QRS complex.


Nodal rhythm.


The absence of P waves and the narrow QRS complexes allow us to give this diagnosis. The P waves are hidden in the QRS complex and probably correspond to the small r wave at the beginning of the QRS complex in V1.


Conduction abnormalities


Reading level

1 / 3
