ECG 095

ECG 095


Basic rhythm

Sinus rhythm at 75 bpm.

P waves


PQ interval



Duration 140 ms. rSR' pattern in V1. Left axis - 45°.

QT interval



rSR' aspect.

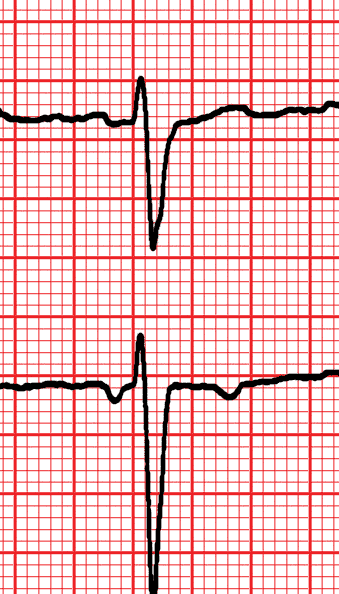

Left axis deviation.

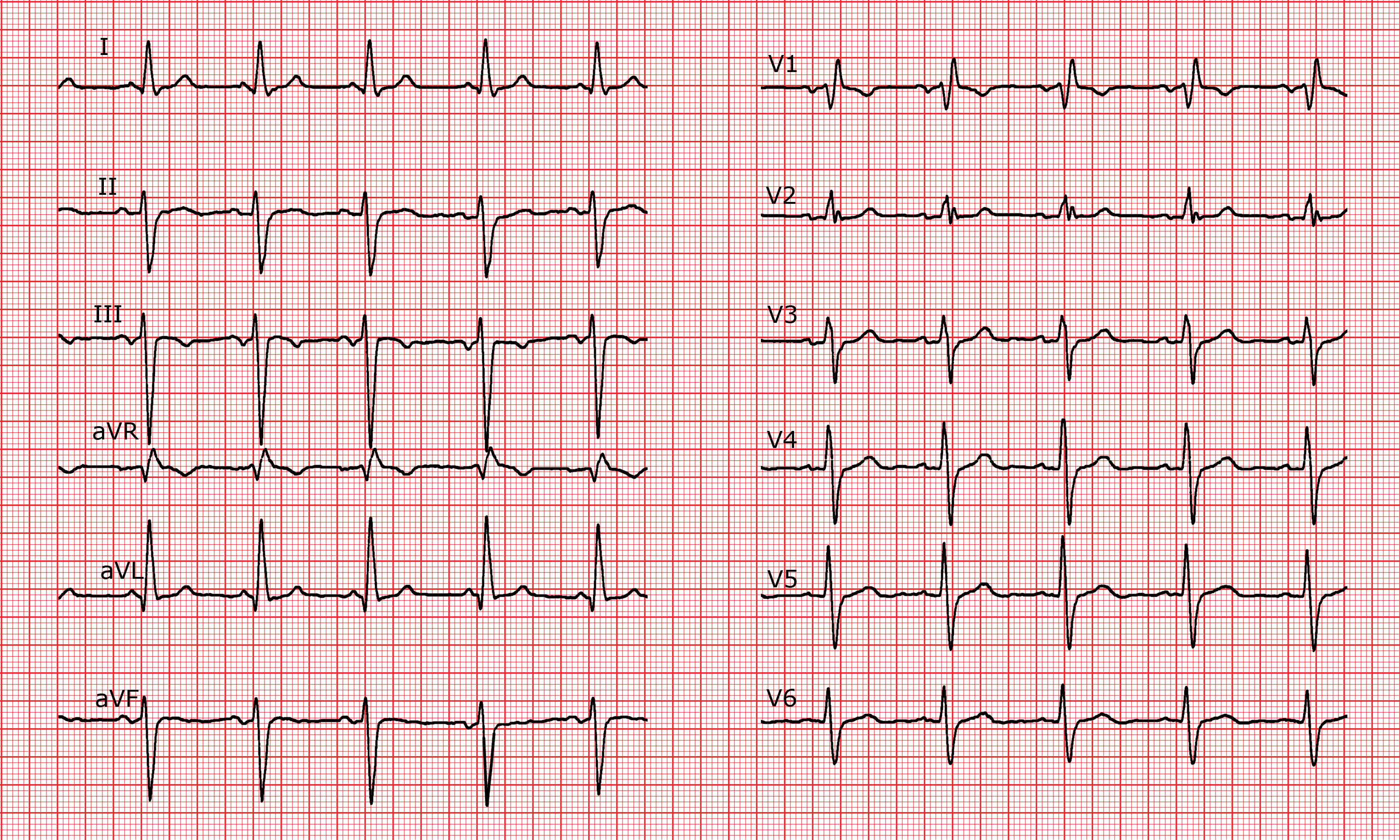

Complete right bundle branch block (RBBB). Left anterior hemiblock.


On this trace a complete right bundle branch block is combined with a left axis deviation. This is absolutely typical of the type of bifascicular block most frequently encountered in clinical practice.


Conduction abnormalities


Reading level
