ECG 094

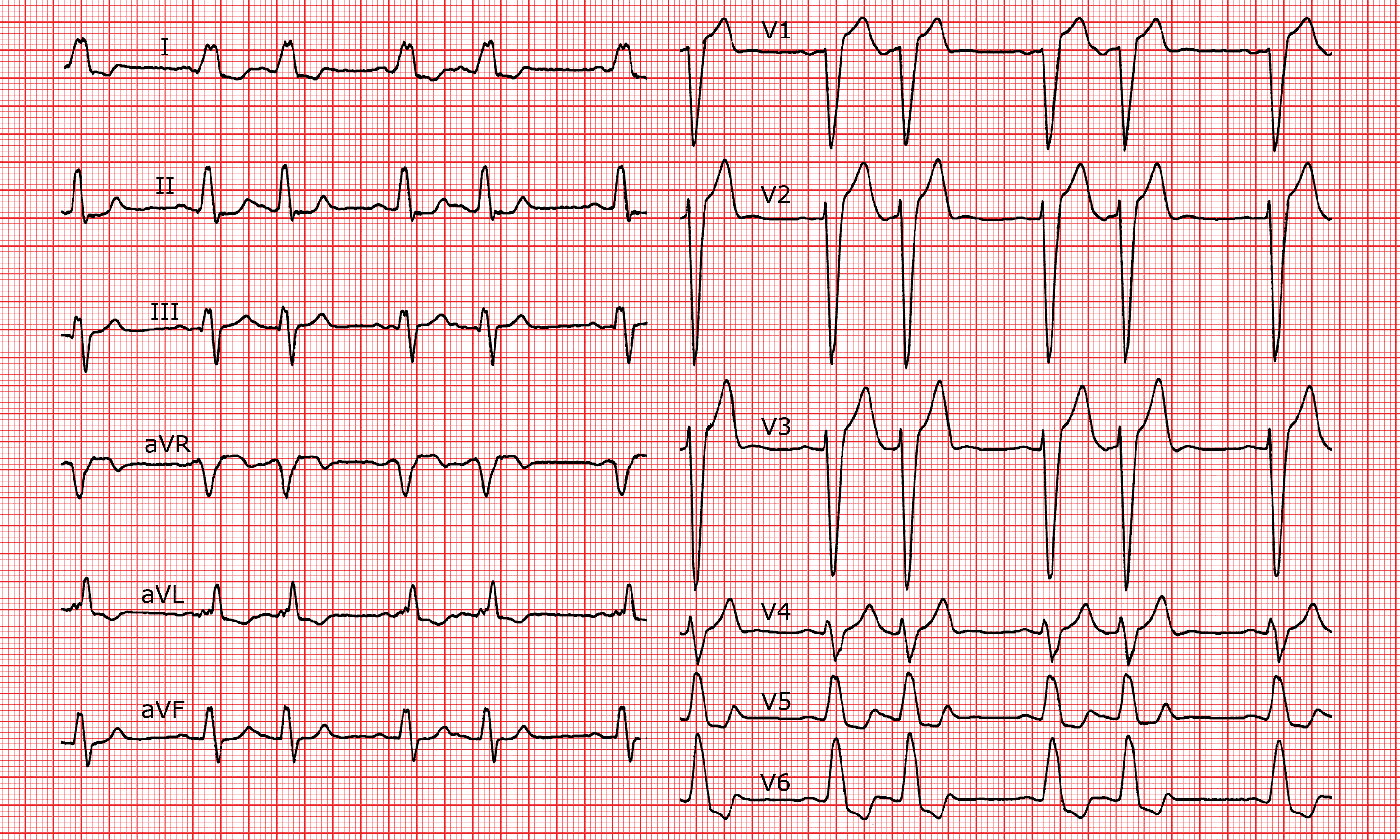

ECG 094


Basic rhythm

Sinus rhythm at 66 bpm.

P waves

Normal. Presence of ectopic P waves with normal axis.

PR interval



Horizontal axis, prolonged duration at 160 ms.

ST segment

Elevation in II, V5 and V6.

QT interval



Premature contraction.
Prolonged QRS complex duration.


Bigeminal right atrial extrasystoles, complete left bundle branch block.


The ectopic P waves are atrial extrasystoles arising in the right atrium, since their axis is very close to the sinus P waves. The morphology of the QRS complex is typical of a left bundle branch block and the changes in the ST segment are due to the conduction disturbance.




Reading level

1 / 3
