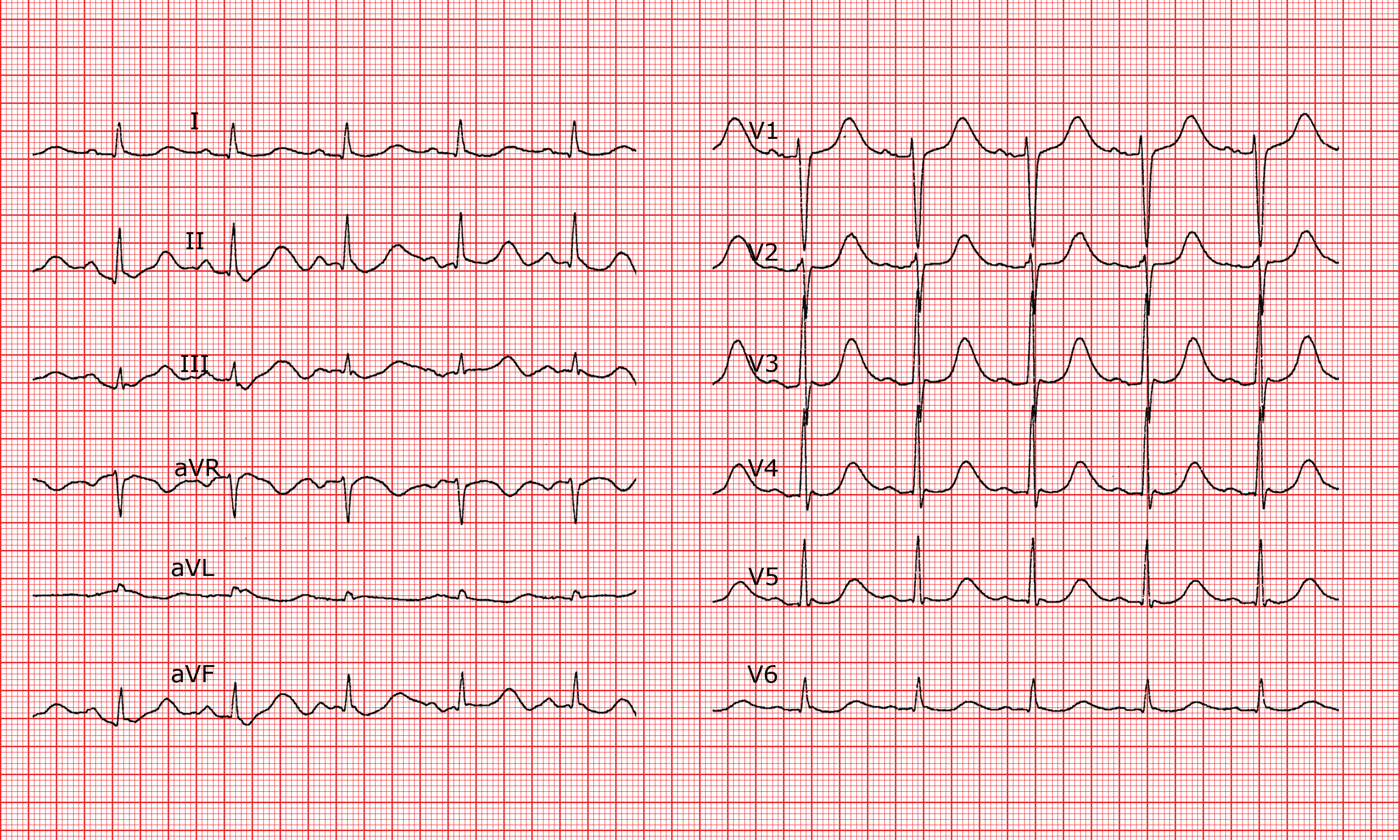

ECG 091

ECG 091

Description

Basic rhythm

Sinus rhythm at 75 bpm.

P waves

Normal.

PR interval

Normal.

QRS

Normal.

QT interval

Prolonged at 620 ms.

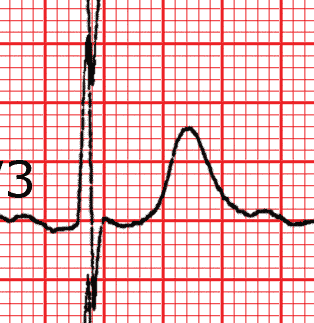

Zones

Prolonged QT interval.

Diagnostic

Acquired long QT syndrome (subarachnoid haemorrhage).


Comments

QT interval prolongation is often seen during a subarachnoid haemorrhage and generally corrects itself as the neurological condition improves.


Category

Prolongation of the QT interval


Keywords


Reading level

2 / 3
