ECG 088

ECG 088

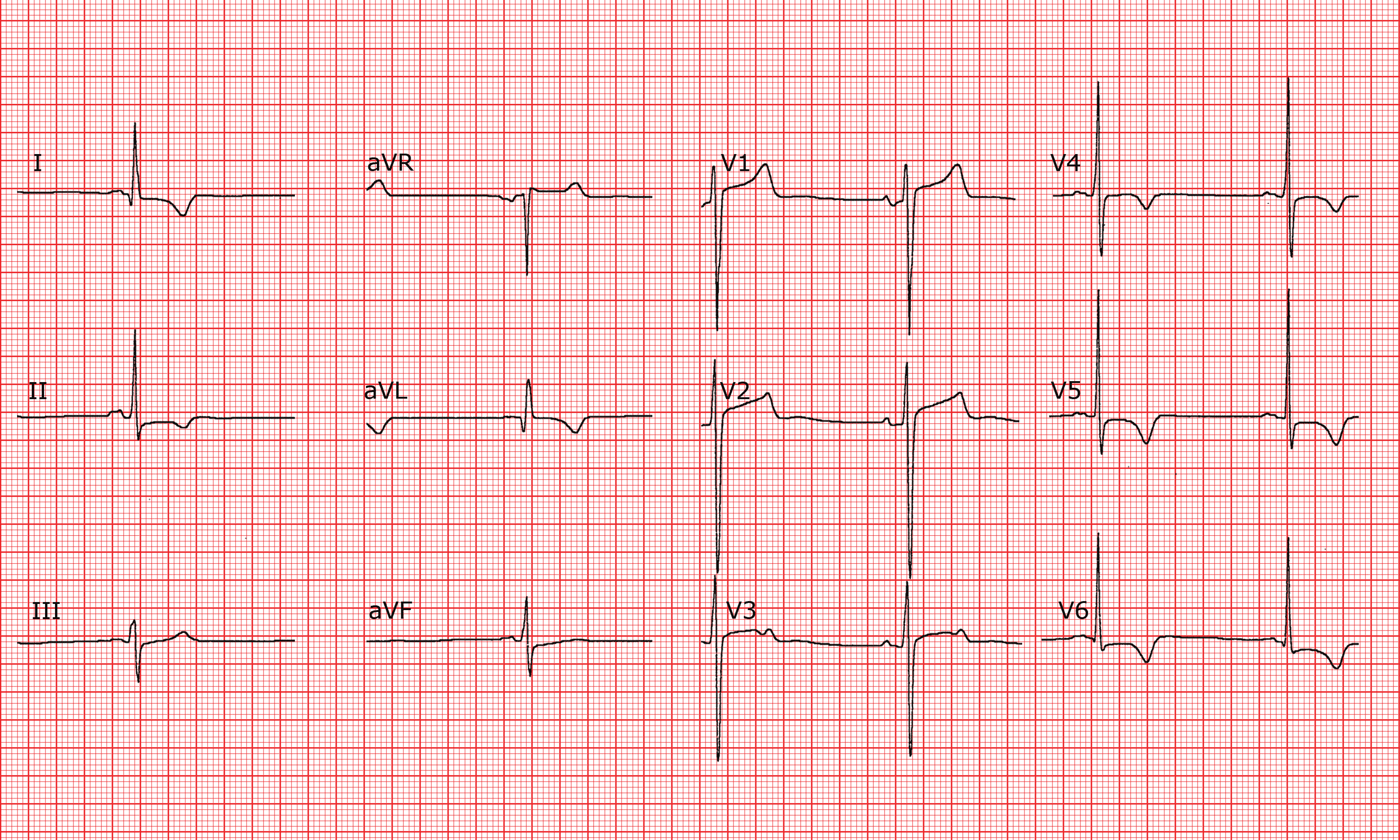

Description

Basic rhythm

Sinus rhythm at 44 bpm.

P waves

Overlapping in II and V5.

PQ interval

Normal.

QRS

Axis - 10, normal duration. Large amplitude in the precordial leads. Positive Sokolov index.

T waves

Negative in I, II, aVL and in V4-V5-V6.

QT interval

Normal.


Zones

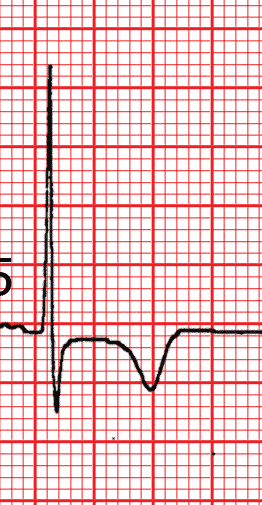

Increased amplitude of the R wave. Negative T wave.

Diagnostic

Left ventricular hypertrophy (relating to hypertrophic cardiomyopathy) with repercussions on the left atrium.


Comments

The diagnosis is based on the increase in amplitude of the QRS complex, a left axis deviation and signs of strain in the form of changes in the terminal phase in the leads relating to the left ventricle.


Category

Hypertrophy
