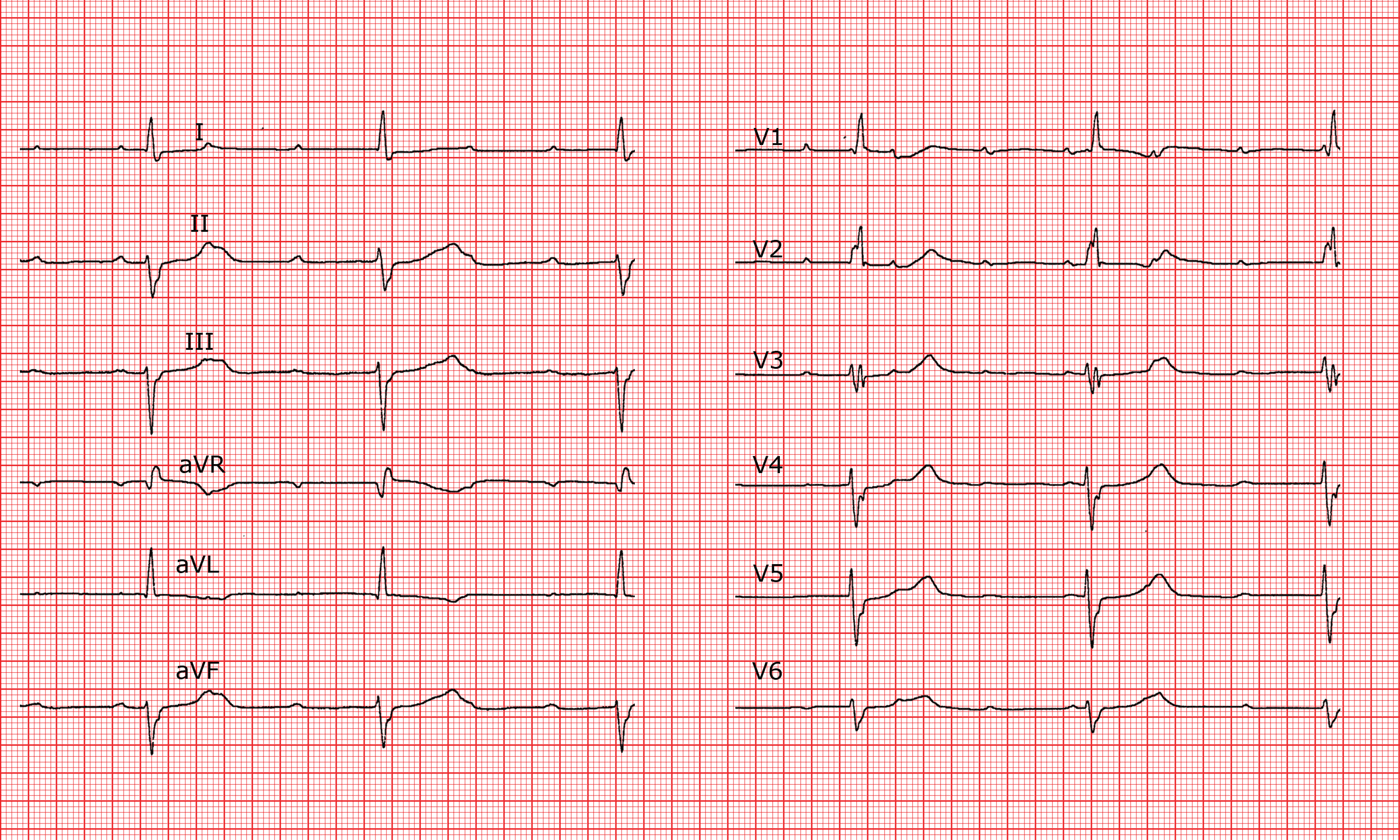

ECG 085

ECG 085


Basic rhythm

Sinus rhythm at 100 bpm. QRS at 38 bpm.

P waves

Normal but dissociated from the QRS complexes.

PR interval



Left axis, rsR' pattern in V1.

QT interval

Prolonged at 600 ms.

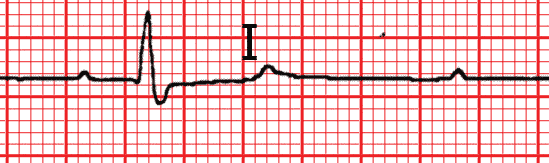

A-V dissociation.
Prolonged QT interval.

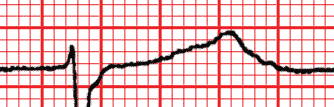

rSR' aspect.


Complete A-V block. Escape rhythm with image of right bundle branch block and left anterior hemiblock. Long QT interval.


The A-V dissociation is a sign of a complete A-V block. The escape rhythm with its bifascicular block morphology (complete right bundle branch block and left anterior hemiblock) originates from the posterior hemibranch or the bundle of His with a bifascicular block on the right branch and anterior hemibranch. The QT interval prolongation is not related to the conduction disturbances but certainly has another cause, for example drug treatment, an electrolytic disorder, ischaemia, etc.
