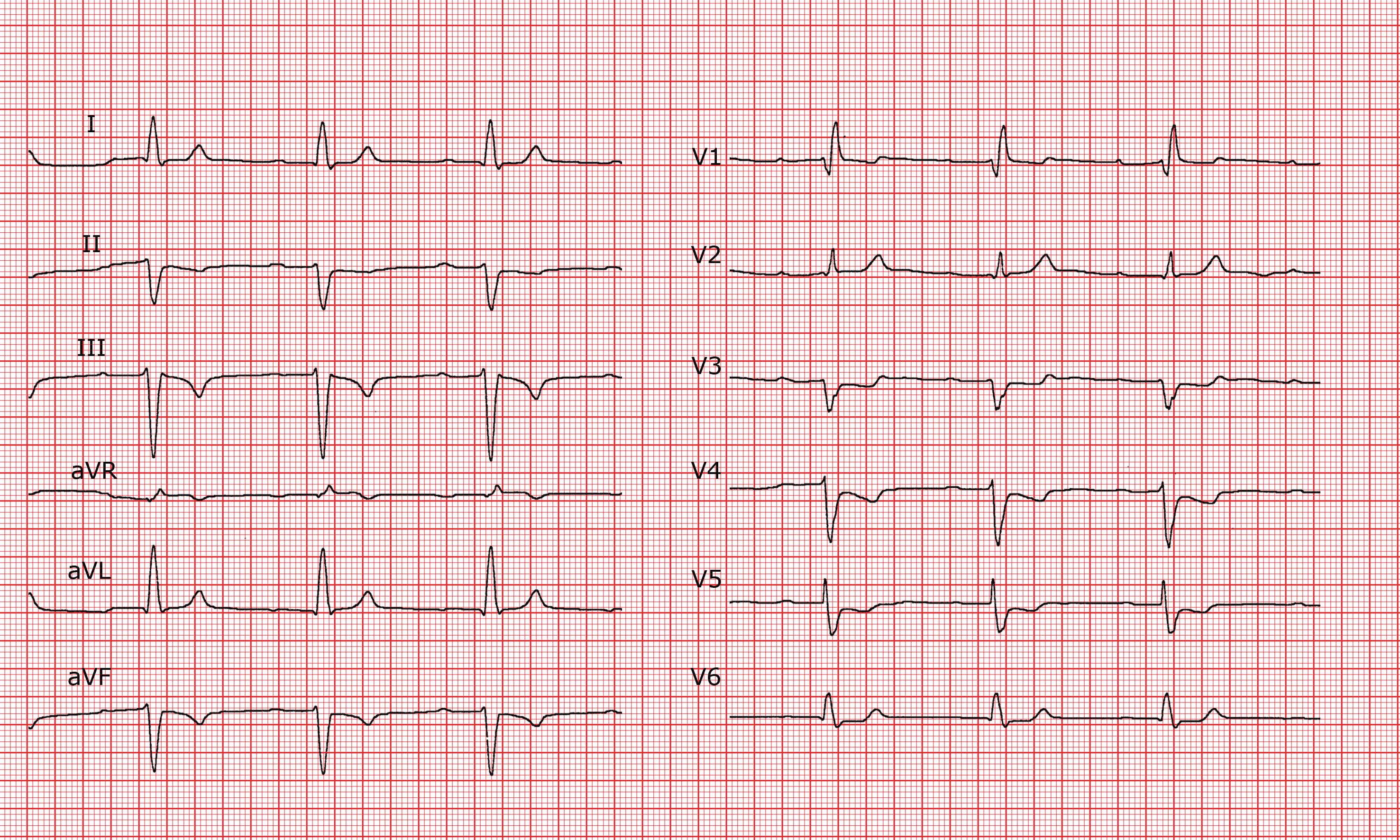

ECG 084

ECG 084

Description

Basic rhythm

Sinus rhythm at 50 bpm.

P waves

Normal.

PR interval

Prolonged at 300 ms.

QRS

Axis - 45 degrees. Duration: 120 ms.

T waves

Negative in V3, V4 and V5.

QT interval

Normal.

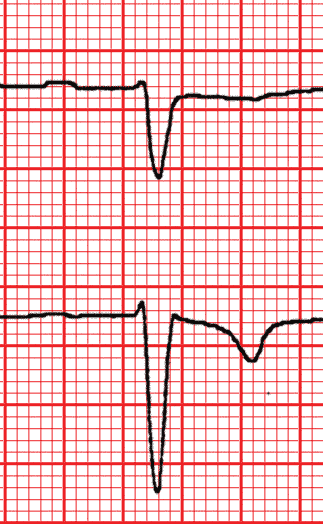

Zones

rSR' aspect with rigth bundle branch blok (RBBB).
Left axis deviation.
Prolonged PR interval.

Diagnostic

Bifascicular block with first degree A-V block (left anterior hemiblock, right bundle branch block).


Comments

With a right bundle branch block the axis remains within normal limits. The left axis deviation is due to a block on the anterior hemibranch. This bifascicular block is associated with a prolongation of the PR interval. The changes in the terminal phase cannot be interpreted in this context. The occurrence of syncope, as was the case for this patient, justifies pacemaker implantation, since there is frequently a complete A-V block.


Category

Conduction abnormalities


Keywords


Reading level

2 / 3
