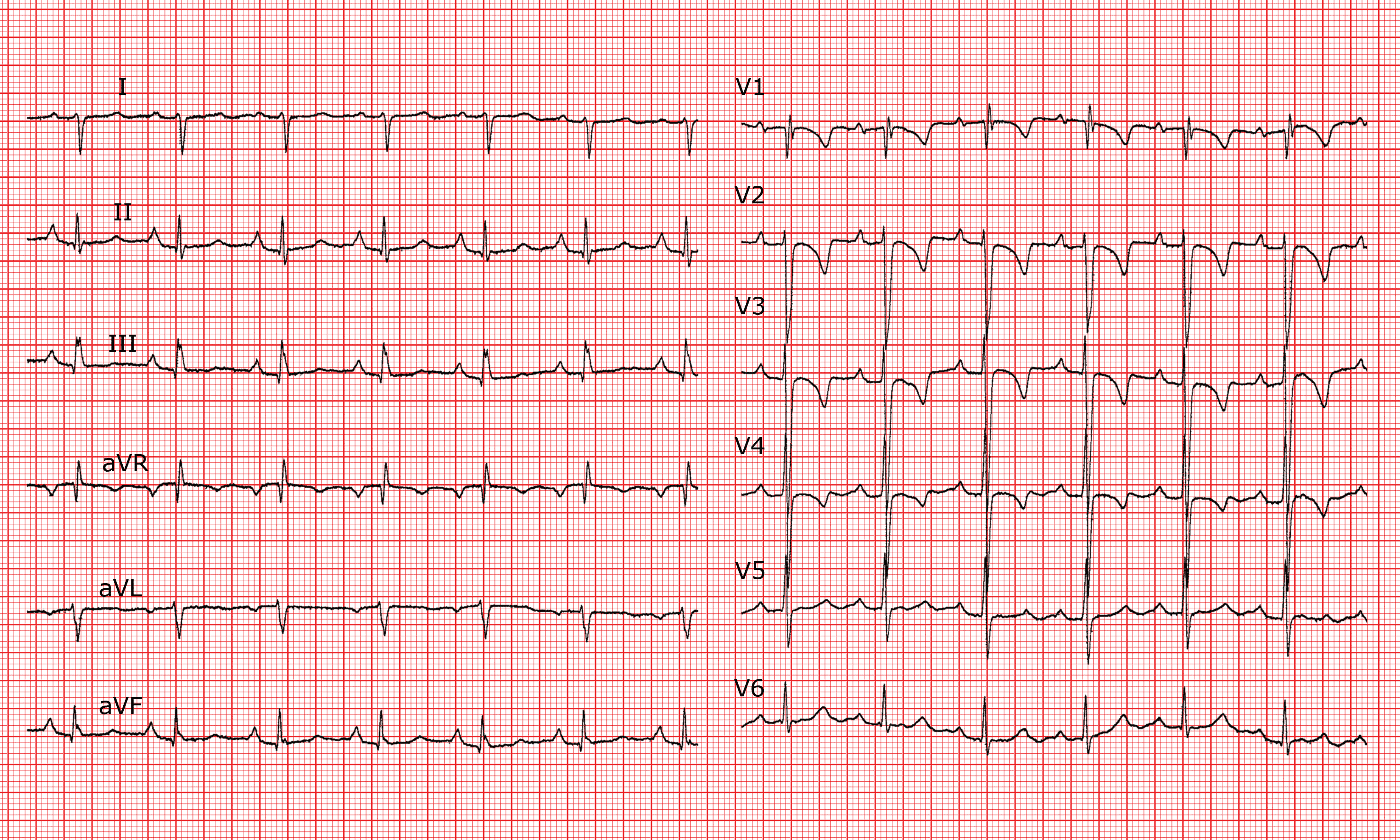

ECG 062

ECG 062

Description

Basic rhythm

Sinus rhythm, regular at 83 bpm.

P waves

Increased amplitude, pointed and symmetric pattern in the inferior leads.

PR interval

Increased (220 ms in V1).

QRS

Right axis deviation (+120°). Q wave in V1, normal duration.

ST segment

Isoelectric.

T waves

Negative from V1 to V4.

QT interval

Normal.

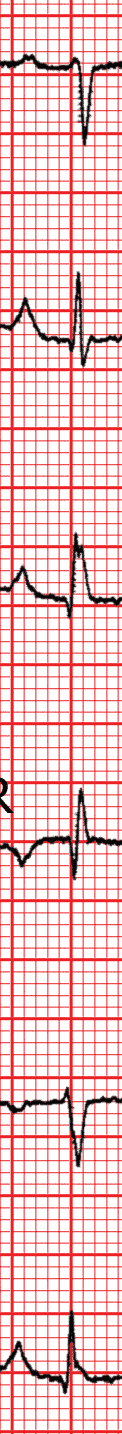

Zones

Rigth axis deviation.
Right atrial enlargement.
Prolonged PR interval.

Diagnostic

Right atrial and ventricular hypertrophy, first degree A-V block.


Comments

This patient had VSD (ventricular septal defect), which had caused right hypertrophy and strain, shown by repolarisation disturbances from V1 to V4, as well as right atrial hypertrophy (increased P wave amplitude in the inferior leads).

A predominant R wave in V1 and predominant S wave in V6 are the missing from the criteria for right ventricular hypertrophy.


Category

Hypertrophy


Keywords


Reading level

1 / 3
