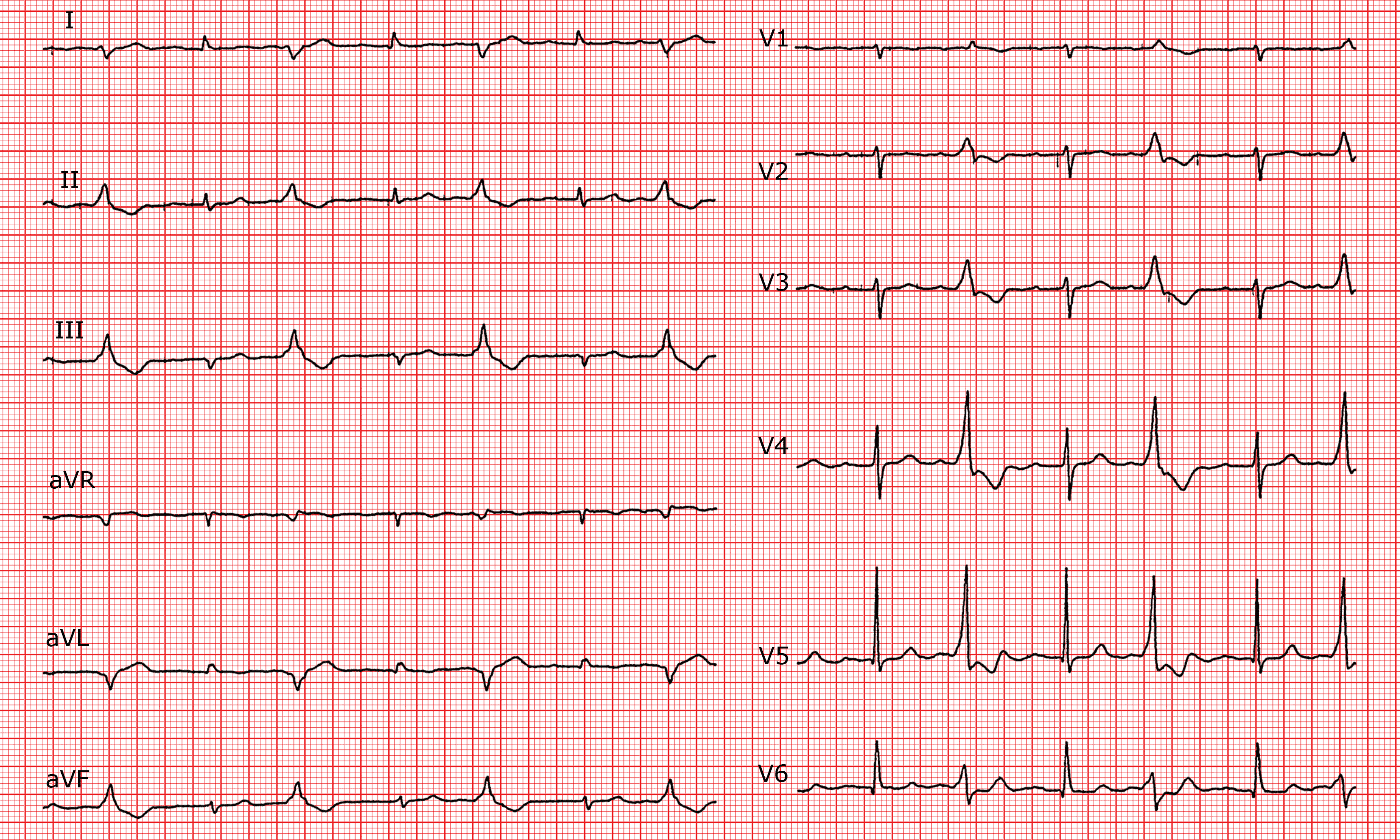

ECG 040

ECG 040

Description

Basic rhythm

Regular sinus rhythm at 85 bpm.

P waves

Normal.

PQ interval

Sometimes normal at 140 ms and sometimes prolonged at 240 ms.

QRS

Alternation of narrow and wide QRS complexes. Narrow QRS axis – 10°. Wide QRS axis + 120°. Predominant R wave in V1 in the wide QRS complexes. Micropotentials in the peripheral leads.

ST segment

Diffuse repolarisation changes following the wide QRS complexes.

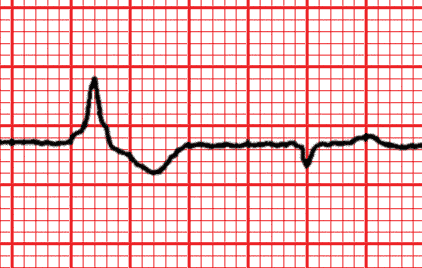

Zones

Two QRS complexes morphologies.
Short PR interval. ∂ wave.
Prolonged PR interval.

Diagnostic

2:1 conduction over a left lateral accessory pathway (WPW syndrome).


Comments

The morphology of the wide QRS complexes is not that of a conduction abnormality. It indicates either a ventricular origin (ventricular bigeminy) or preexcited complexes. As each wide QRS complex is preceded by a P wave, the latter hypothesis is correct. Intermittent preexcitation is explained by the duration of the refractory period of the accessory pathway, which is long in this case.


Category

Preexcitation


Keywords


Reading level

2 / 3
