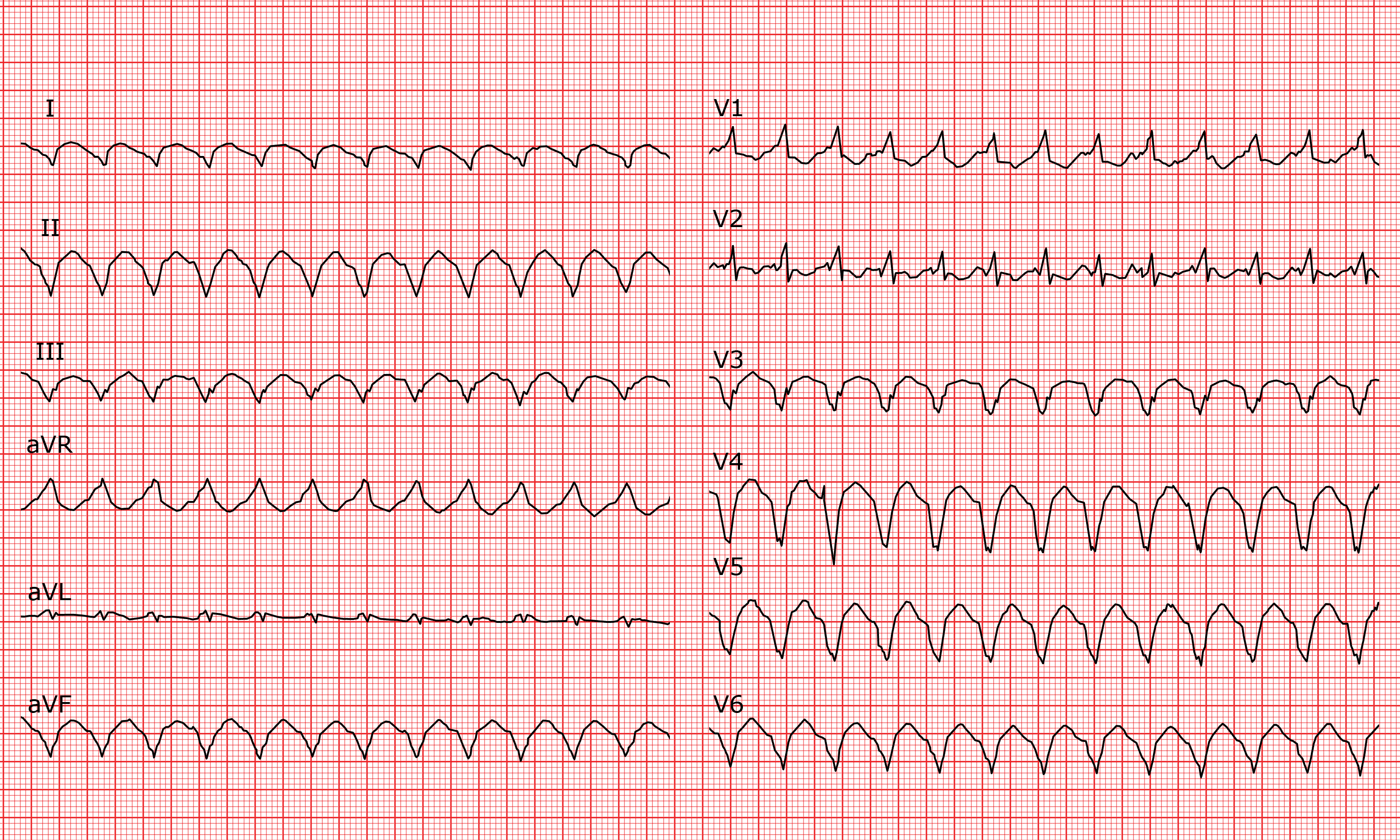

ECG 018

ECG 018

Description

Basic rhythm

Wide complex tachycardia at 165 bpm.

P waves

Visible in V1, dissociated from the QRS complexes.

PR interval

Random.

QRS

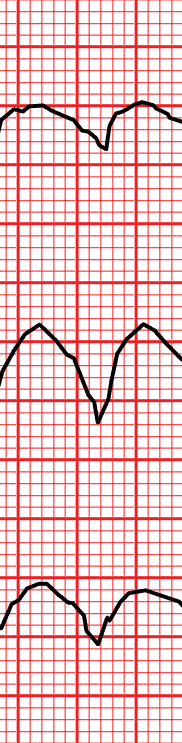

Enlarged, positive in V1, QS pattern from V3 to V6. Axis - 120°.

ST segment, T waves

Diffuse changes in the terminal phase.

QT interval

Not definable.


Zones

Wide QRS complexes tachycardia.
Left axis deviation.

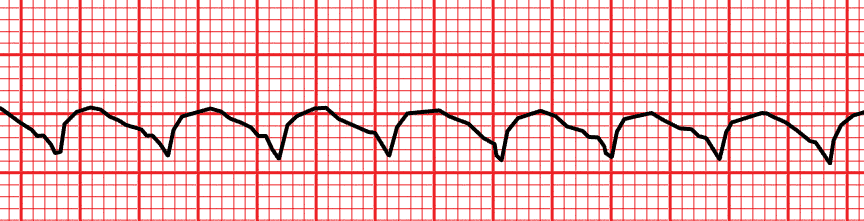

AV dissociation nicely visible.

Diagnostic

Ventricular tachycardia.


Comments

AV dissociation is an absolute criterion for the diagnosis of ventricular tachycardia. Extreme axis deviation and the morphology of the QRS complex in the precordial leads are other criteria for this diagnosis.


Category

Wide QRS complex tachycardia


Keywords


Reading level

2 / 3
